Reassembly

SLIDING ROOF: SLIDING ROOF HOUSING (for Standard): REASSEMBLY

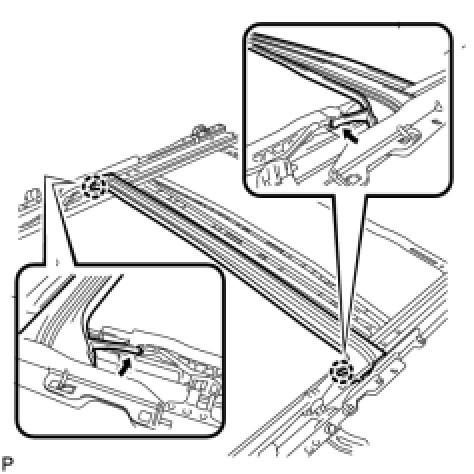

1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

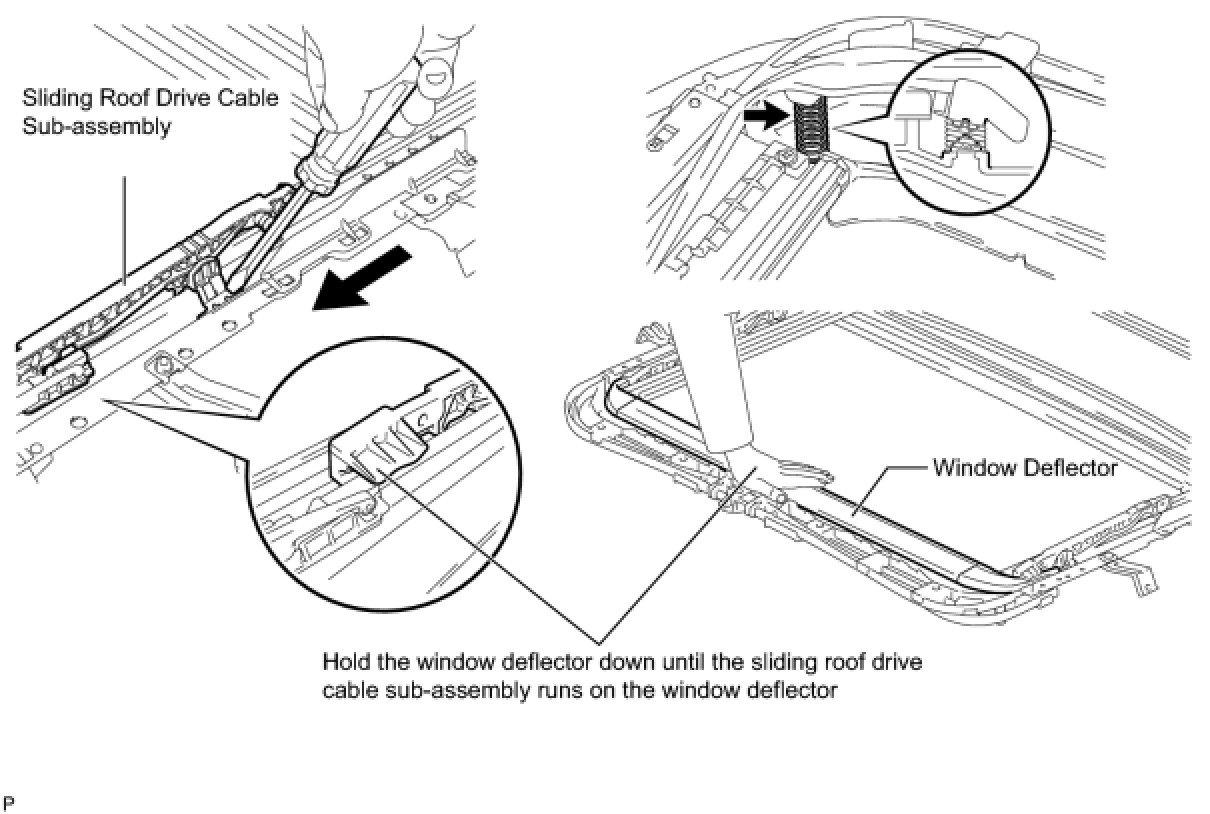

(a) Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.





NOTICE:
Make sure that the spring indicated by the arrow in the illustration is securely installed.

HINT
Hold the window deflector down, as shown in the illustration, until the sliding roof drive cable sub-assembly runs on the window deflector.

(b) Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.

(c) Engage the 2 claws and install the sliding roof drip channel.





(d) Install the 2 sliding roof side stoppers with the 2 screws.





Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

2. ADJUST FULLY CLOSED POSITION

(a) Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction as indicated by the arrows in the illustration and align the matchmarks.





HINT
Tape the screwdriver tip before use.

3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

(a) Insert the sunshade trim into the sliding roof housing sub-assembly.





(b) Install the sliding roof piece sub-assembly LH with the screw.





Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

HINT
Use the same procedure for the RH side and the LH side.

4. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

(a) Install the sliding roof drive gear sub-assembly with the 2 bolts.





Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

(b) Engage the claw and install the sliding roof room light bracket.
