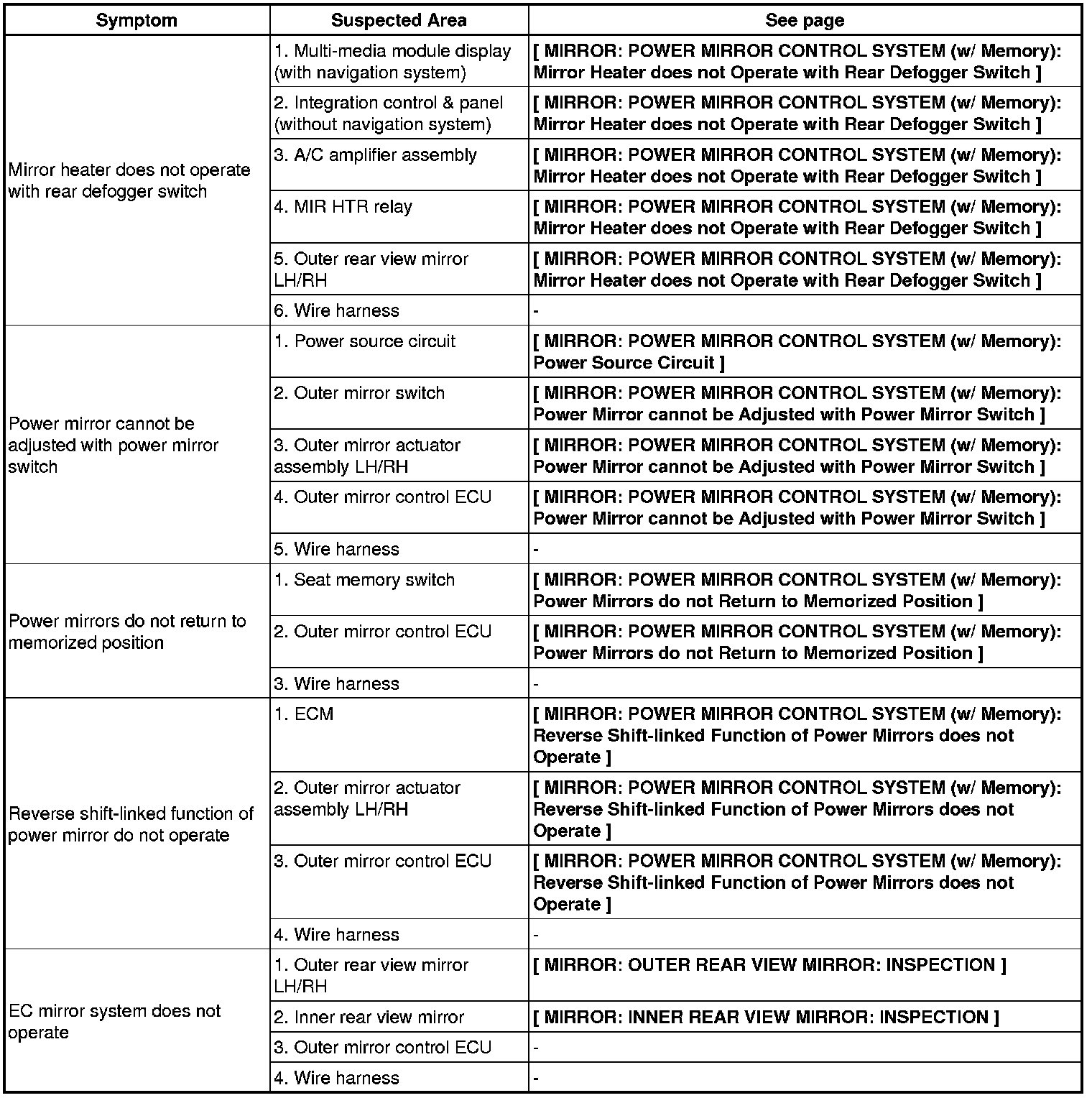

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): PROBLEM SYMPTOMS TABLE
Power Mirror Control System
Power Mirror Control System:
