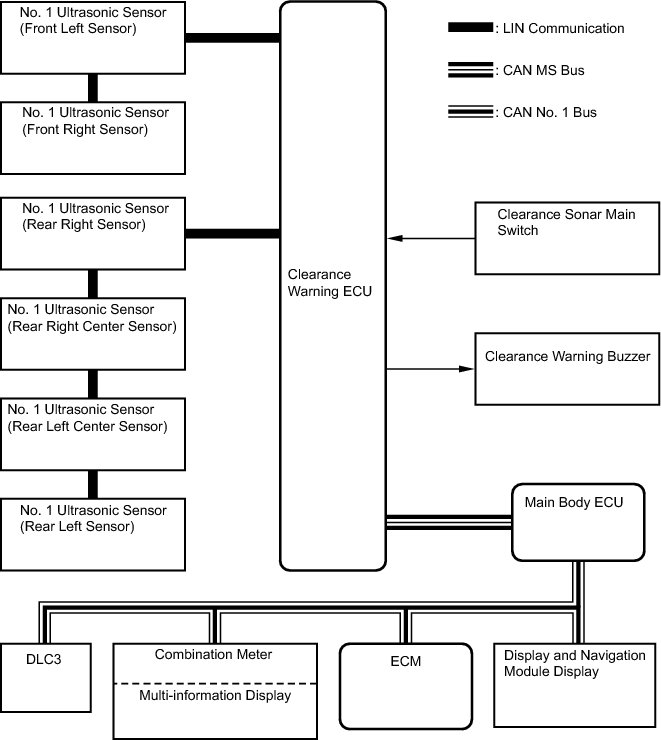

System Diagram





PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: SYSTEM DIAGRAM

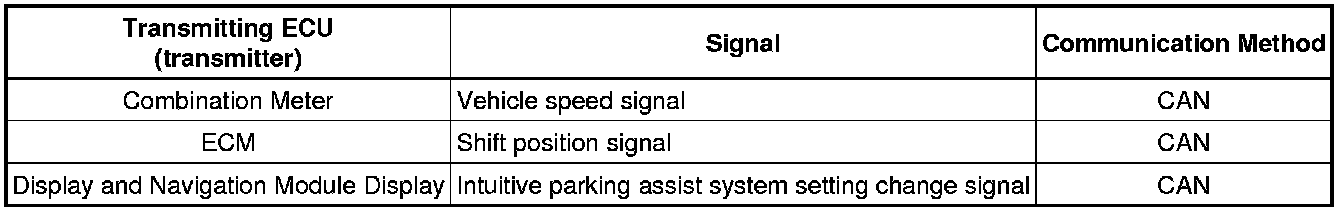

Input signal to clearance warning ECU:

Input signal to clearance warning ECU::

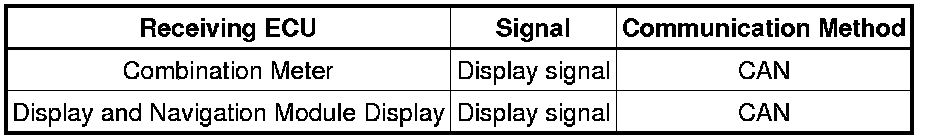

Output signal from clearance warning ECU:

Output signal from clearance warning ECU::
