Windshield Washer Spray Nozzle: Adjustments

WIPER AND WASHER: WASHER NOZZLE: ADJUSTMENT

ADJUSTMENT

1. INSPECT AND ADJUST WASHER NOZZLE
(a) The washer nozzle does not require any adjustments as it is a spray type.
(b) Do not clean or adjust the washer nozzle with a safety pin or any other instrument. The washer nozzle tip is made of resin and damages easily.
(c) If the washer nozzle is clogged with wax or other foreign matter, remove the nozzle and clean the nozzle hole with a soft resin brush or other similar tool.

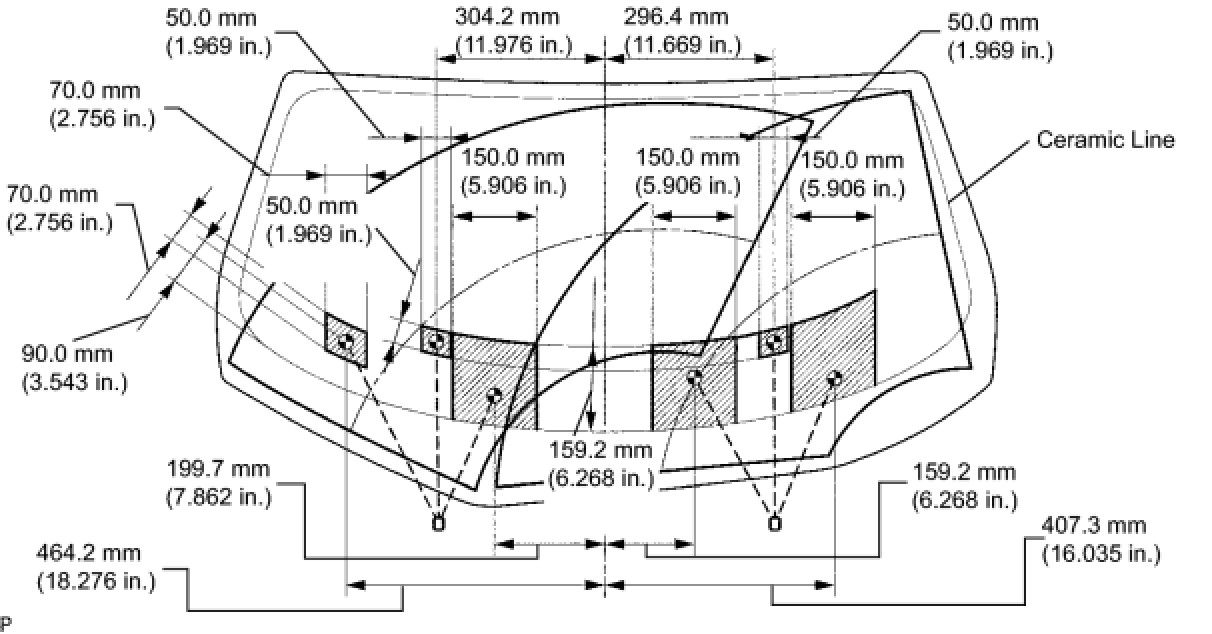

(d) With the engine running, check that the point where the washer fluid sprays the windshield is within the range indicated by the shaded areas.
