Power Source Circuit

WIPER AND WASHER: WIPER AND WASHER SYSTEM: Power Source Circuit

Power Source Circuit

DESCRIPTION

This circuit provides power to the combination switch.

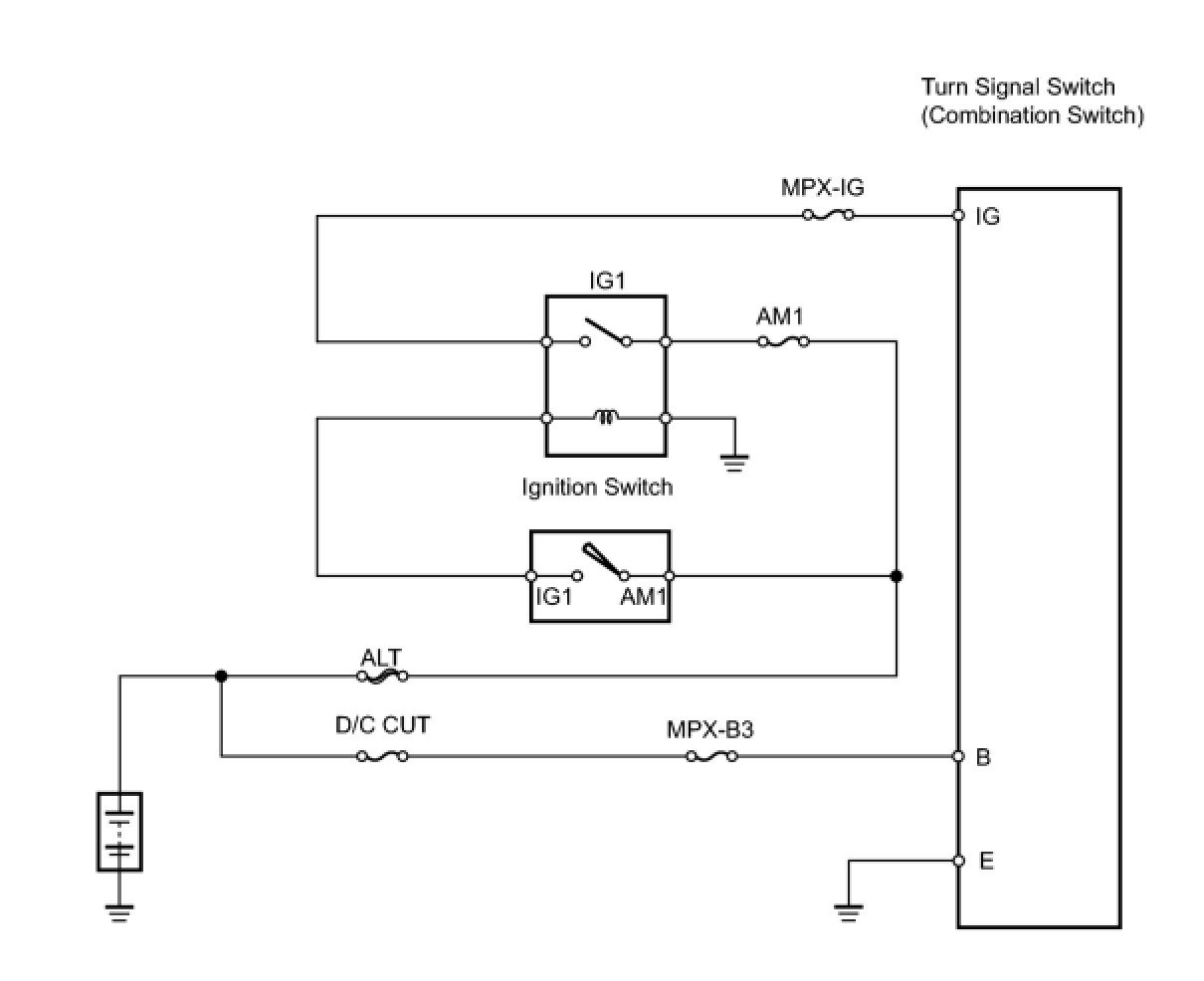

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (SWITCH - BATTERY AND BODY GROUND)

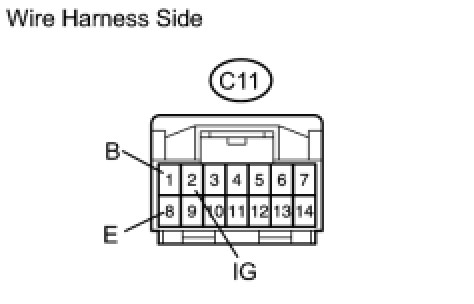

(a) Disconnect the C11 switch connector.
(b) Measure the voltage of the wire harness side connector.

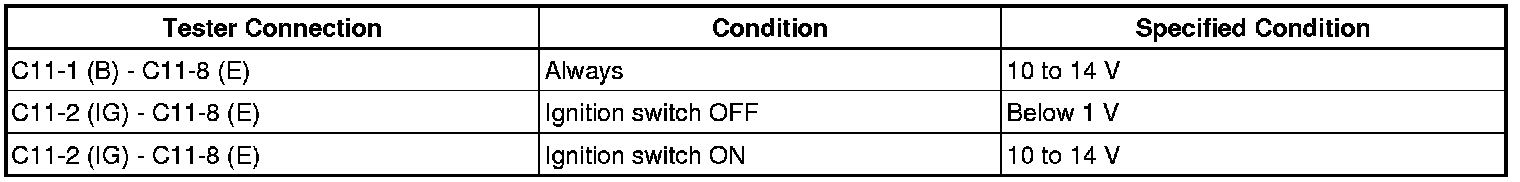

Standard voltage:





(c) Measure the resistance of the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
