Headlamp Wiper Motor: Testing and Inspection

WIPER AND WASHER: HEADLIGHT CLEANER ACTUATOR: INSPECTION

INSPECTION





1. INSPECT HEADLIGHT CLEANER WASHER MOTOR AND PUMP ASSEMBLY
(a) Apply battery voltage to the headlight cleaner washer motor connector and check the operation of the headlight cleaner washer motor and pump.

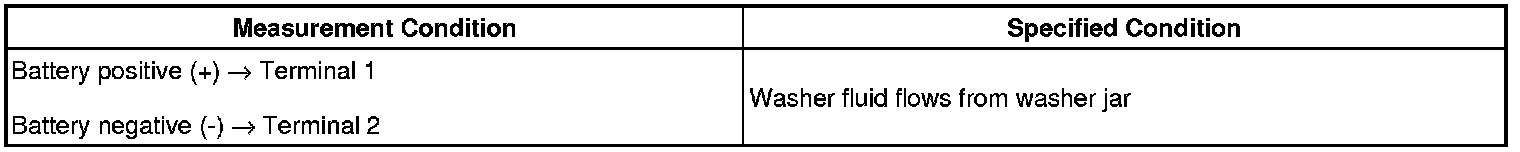

OK:





If the result is not as specified, replace the motor and pump assembly.
