Removal

WIPER AND WASHER: HEADLIGHT CLEANER ACTUATOR: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. REMOVE RADIATOR GRILLE Removal
2. REMOVE FRONT FENDER LINER LH Removal
3. REMOVE FRONT FENDER LINER RH Removal
4. REMOVE FRONT BUMPER COVER Removal
5. REMOVE HEADLIGHT CLEANER WASHER NOZZLE





(a) Remove the clamp.
(b) Remove the washer nozzle.

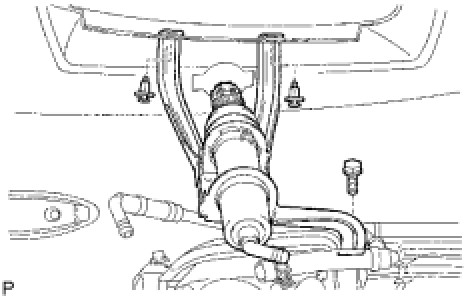

6. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH





(a) Disconnect the cleaner hose.
(b) Remove the bolt, 2 clips and actuator.
