Heated Glass Element Relay: Testing and Inspection

WINDSHIELD / WINDOWGLASS: DEFOGGER RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. REMOVE DEFOGGER RELAY (Marking: DEFOG)
(a) Remove the defogger relay from the luggage room junction block.





2. INSPECT DEFOGGER RELAY
(a) Measure the resistance of the relay.

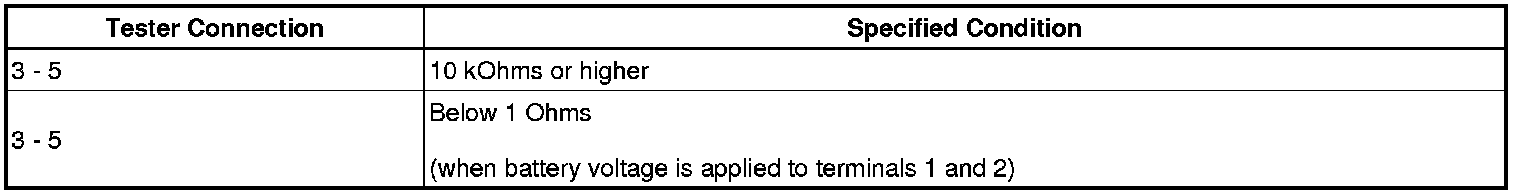

Standard resistance:





If the result is not as specified, replace the relay.
3. INSTALL DEFOGGER RELAY
