Home
>>
Lexus
>>
2009
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Specifications
>>
Mechanical Specifications
>>
Torque Specifications

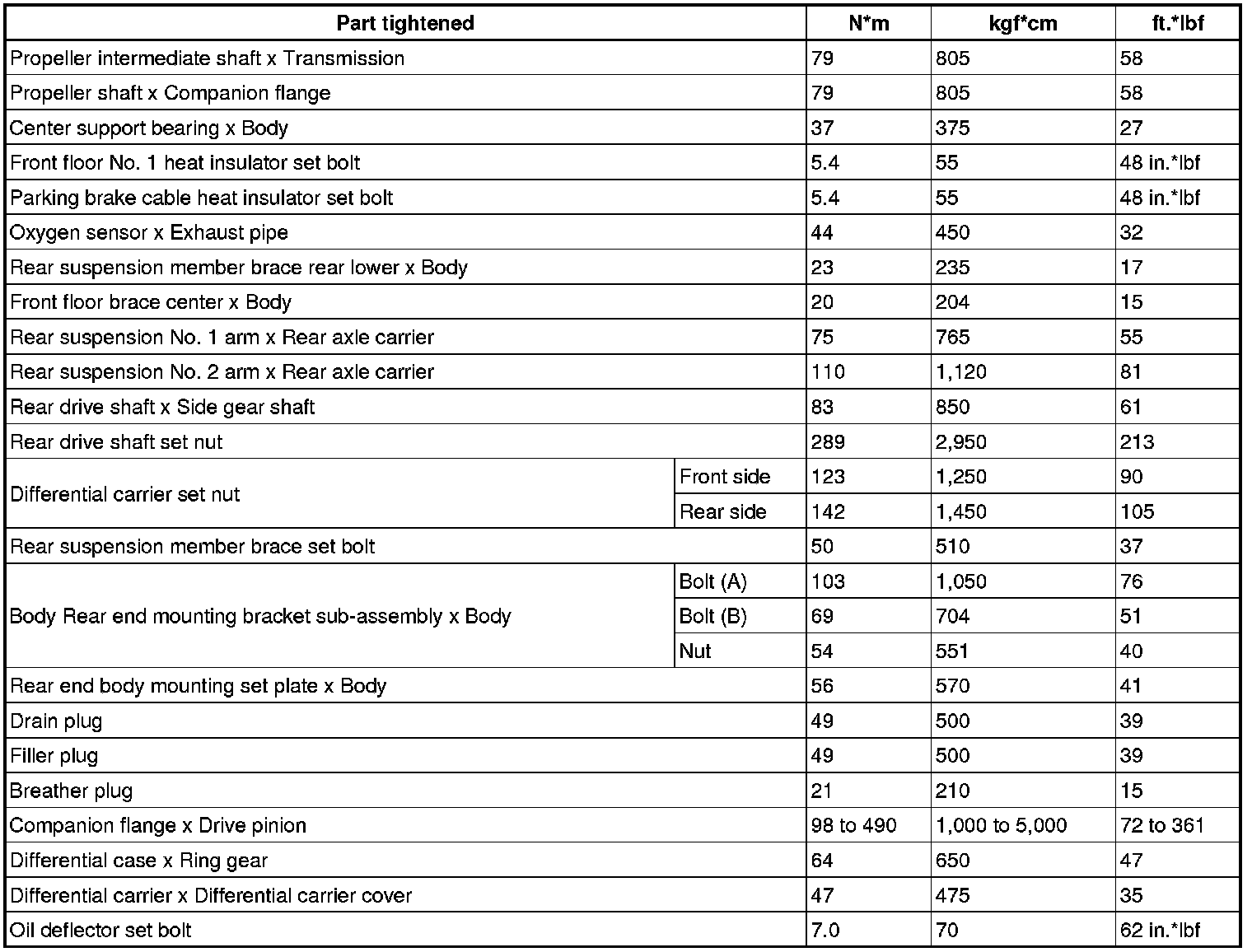

Torque Specifications
SERVICE SPECIFICATIONS: DIFFERENTIAL: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
