Wiring Harness: Testing and Inspection

A761E AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION

INSPECTION

1. INSPECT TRANSMISSION WIRE

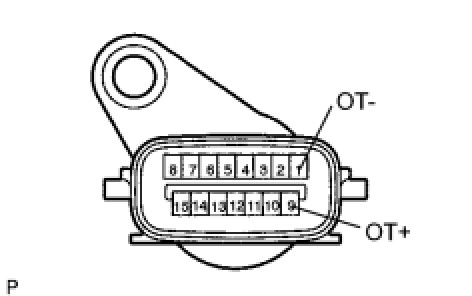

(a) Measure the resistance of the transmission wire.

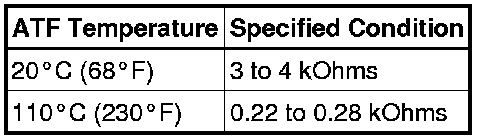

Standard resistance:





HINT: If the resistance is not within the specified range of either of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.

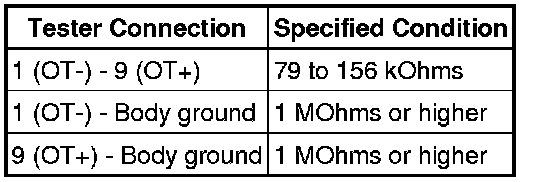

Standard resistance:
