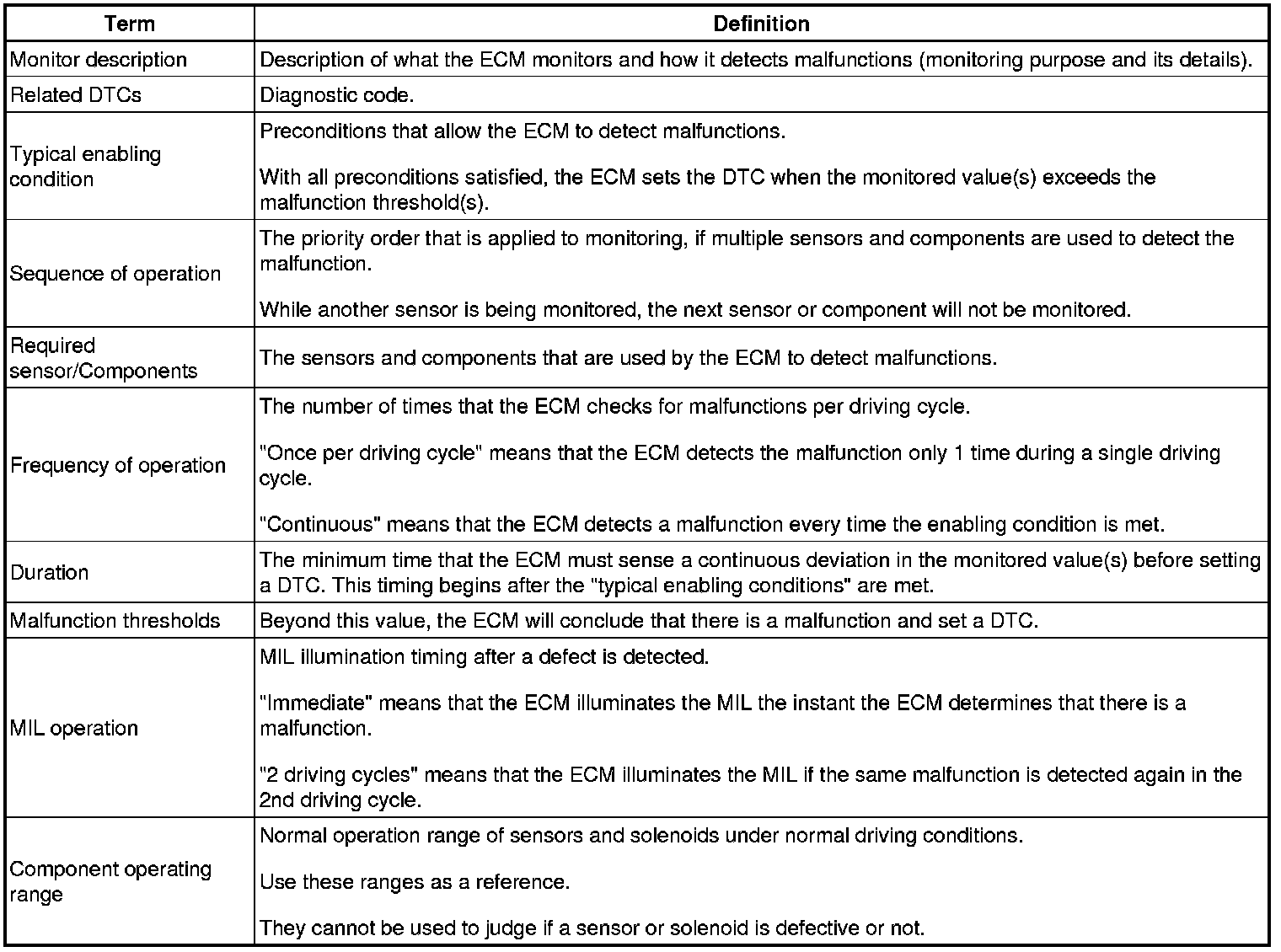

A761E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: DEFINITION OF TERMS
DEFINITION OF TERMS
