Inspection

A761E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSPECTION

INSPECTION

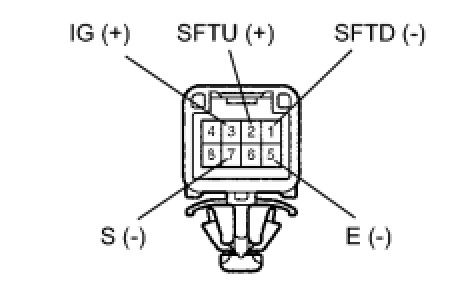

1. INSPECT TRANSMISSION CONTROL SWITCH





(a) Measure the resistance between each terminal of the shift lock control unit assembly when the shift lever is moved to each position.

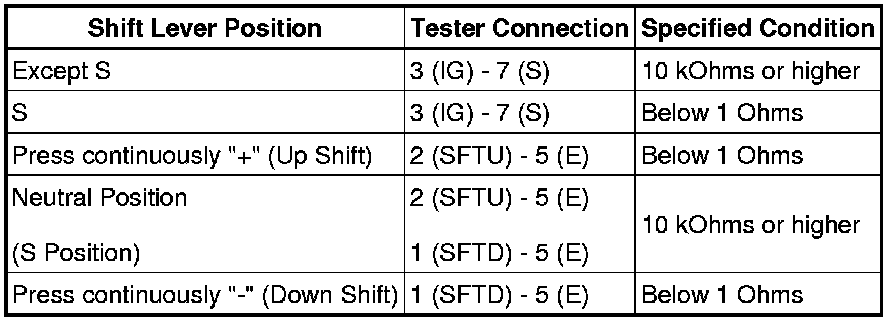

Standard resistance:

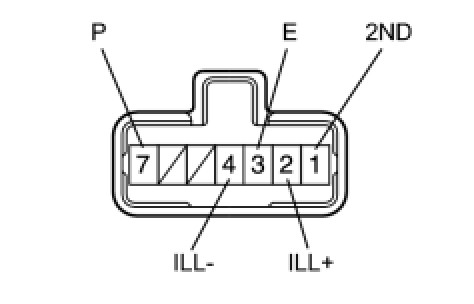

2. INSPECT NO. 1 PATTERN SELECT SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in table below.

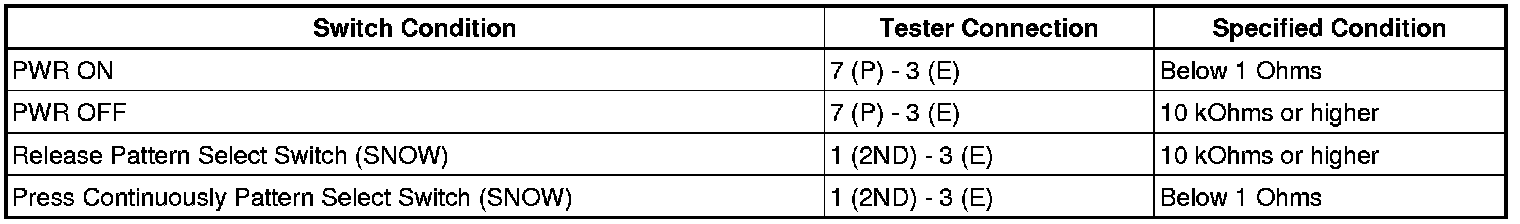

Standard resistance:






(b) Connect the battery's positive (+) lead to terminal 2 (ILL+) and the battery's negative (-) lead to terminal 4 (ILL-). Then check the illumination of the switch.
OK:
The illumination turns on.
