Removal

A761E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE CONSOLE BOX ASSEMBLY
(a) Remove the console box Removal.

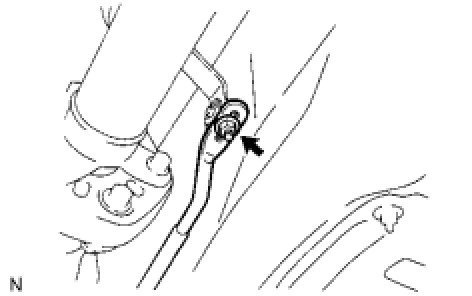

3. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY





(a) Move the shift lever to the N position.
(b) Remove the nut and disconnect the shifting rod from the connecting rod swivel.

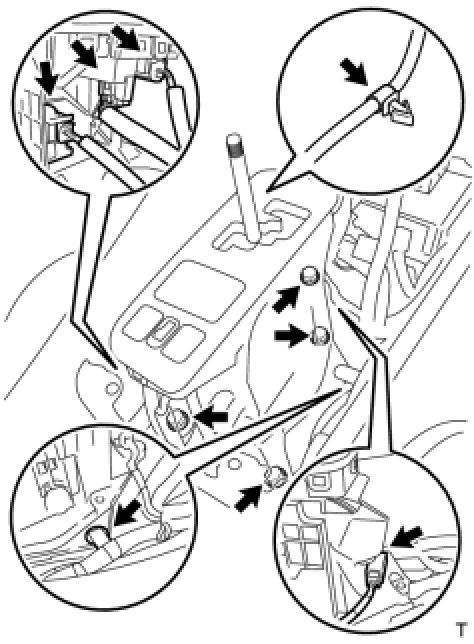

4. REMOVE FLOOR SHIFT ASSEMBLY
(a) Disconnect the 4 connectors.
(b) Remove the 2 wire harness clamps from the floor shift.





(c) Remove the 4 bolts and floor shift.
