Reassembly

A761E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL TRANSMISSION CONTROL SWITCH

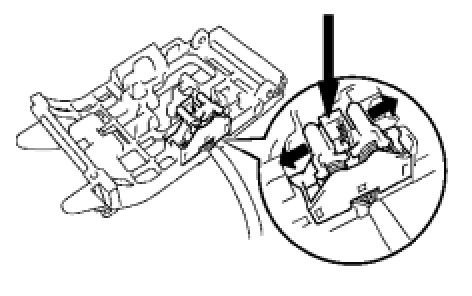

(a) Install the transmission control switch to the shift lever guide housing.
HINT: Securely attach the claws.

2. INSTALL SHIFT LOCK CONTROL ECU

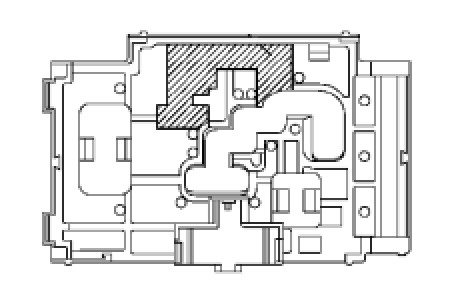

(a) Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.





(b) Install the shift lock control ECU with the 2 screws.





(c) Install the shift lever guide housing to the floor shift assembly.
NOTE:
When installing the shift lever guide housing, first attach the claw. Then install the shift lever nut and lock pin.

(d) Install the floor shift assembly with the shift lever lock pin and a new shift lever nut.





(e) Attach the claws and install the floor shift position indicator housing.
3. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

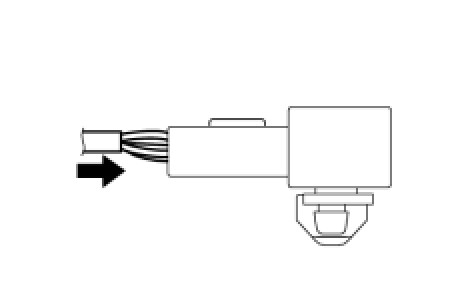

(a) Securely connect the 2 terminals of the 2 indicator light wire harnesses to the transmission control switch connector.

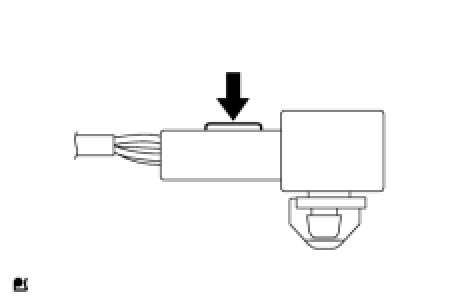

(b) Fix the stopper of the connector in place.
4. INSTALL POSITION INDICATOR LIGHT BULB





(a) Install the position indicator bulb to the indicator light wire.

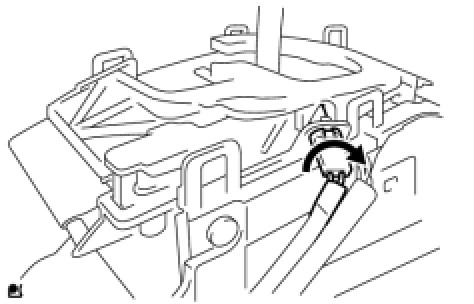

(b) Align the indicator light wire with the key part of the position indicator guide housing, and install the wire. Then rotate the wire clockwise until it locks.
NOTE:
Securely install the indicator light wire to the position indicator guide housing.





5. INSTALL COIN BOX PANEL STRAIGHT PIN
6. INSTALL NO. 1 COIN BOX PANEL





(a) Install the No. 1 coin box panel and coin box panel torsion spring.
(b) Install the coin box panel straight pin and No. 1 shift lever gear.
7. INSTALL RETURN SPRING DAMPER





(a) Install the return spring damper with the screw.
8. INSTALL SHIFT LOCK RELEASE BUTTON





(a) Install the shift lock release button to the shift position indicator.
9. INSTALL NO. 1 PATTERN SELECT SWITCH ASSEMBLY





(a) Install the pattern select switch to the shift position indicator.
10. INSTALL TRACTION CONTROL SWITCH





(a) Install the traction control switch to the shift position indicator.
11. INSTALL SHIFT POSITION INDICATOR





(a) Attach the 6 claws to install the shift position indicator to the floor shift position indicator housing.
NOTE:
Securely attach the claws.





(b) Attach the 8 claws to install the position indicator housing plate.
NOTE:
Securely attach the claws.





(c) Attach the claws shown in the illustration, and install the shift indicator knob, coin box lock and coin box compression spring.
NOTE:
Securely attach the claws.

12. INSTALL FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSEMBLY





(a) Install the floor shift lever knob to the shift lever.
