Shifter A/T: Adjustments

A761E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: ADJUSTMENT

ADJUSTMENT

1. ADJUST SHIFT LEVER POSITION





(a) Remove the nut and disconnect the shifting rod.

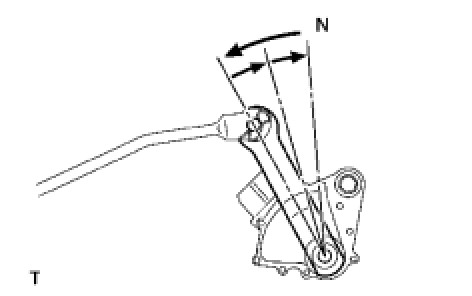

(b) Turn the control shaft lever of the neutral start switch counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.
(c) Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.
Torque: 13 Nm (130 kgf-cm, 10 ft-lbf)
NOTE:
Do not push the shift lever too hard.

(d) Check that the shift lever moves smoothly and the shift lever and gear operate correctly.
