Inspection

A761E AUTOMATIC TRANSMISSION: SHIFT LOCK SYSTEM: INSPECTION

INSPECTION

1. INSPECT KEY INTERLOCK SOLENOID
(a) Disconnect the solenoid connector.

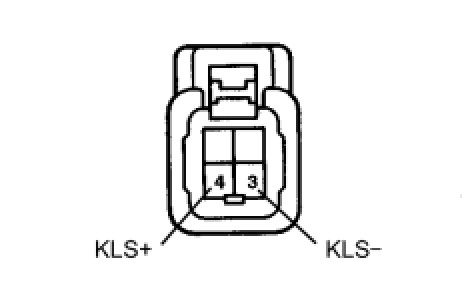

(b) Connect the battery's positive (+) lead to terminal 4 (KLS+) and the battery's negative (-) lead to terminal 3 (KLS-). Check that the operating noise of the solenoid can be heard.
If the result is not as specified, replace the solenoid.
