System Diagram








A761E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

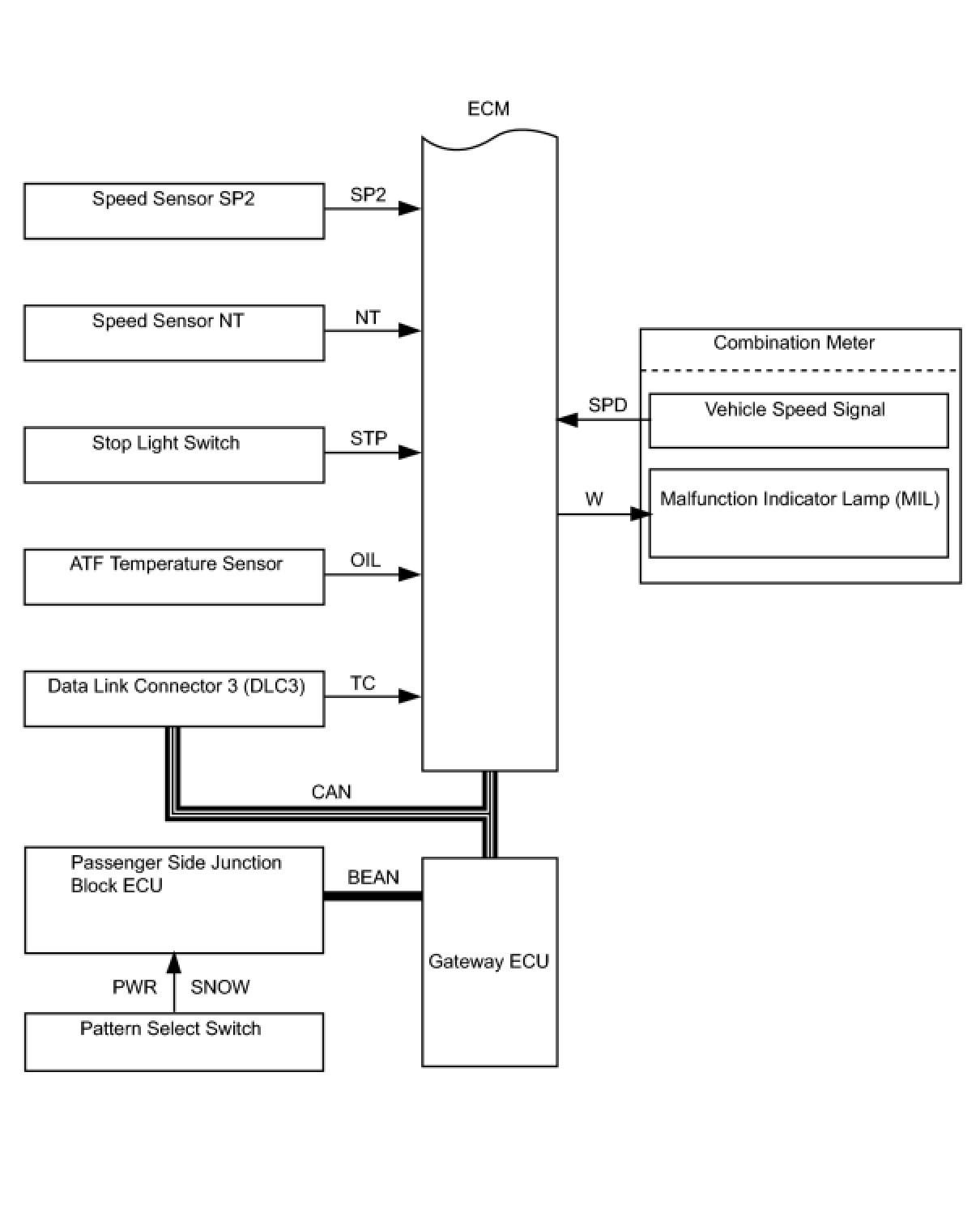

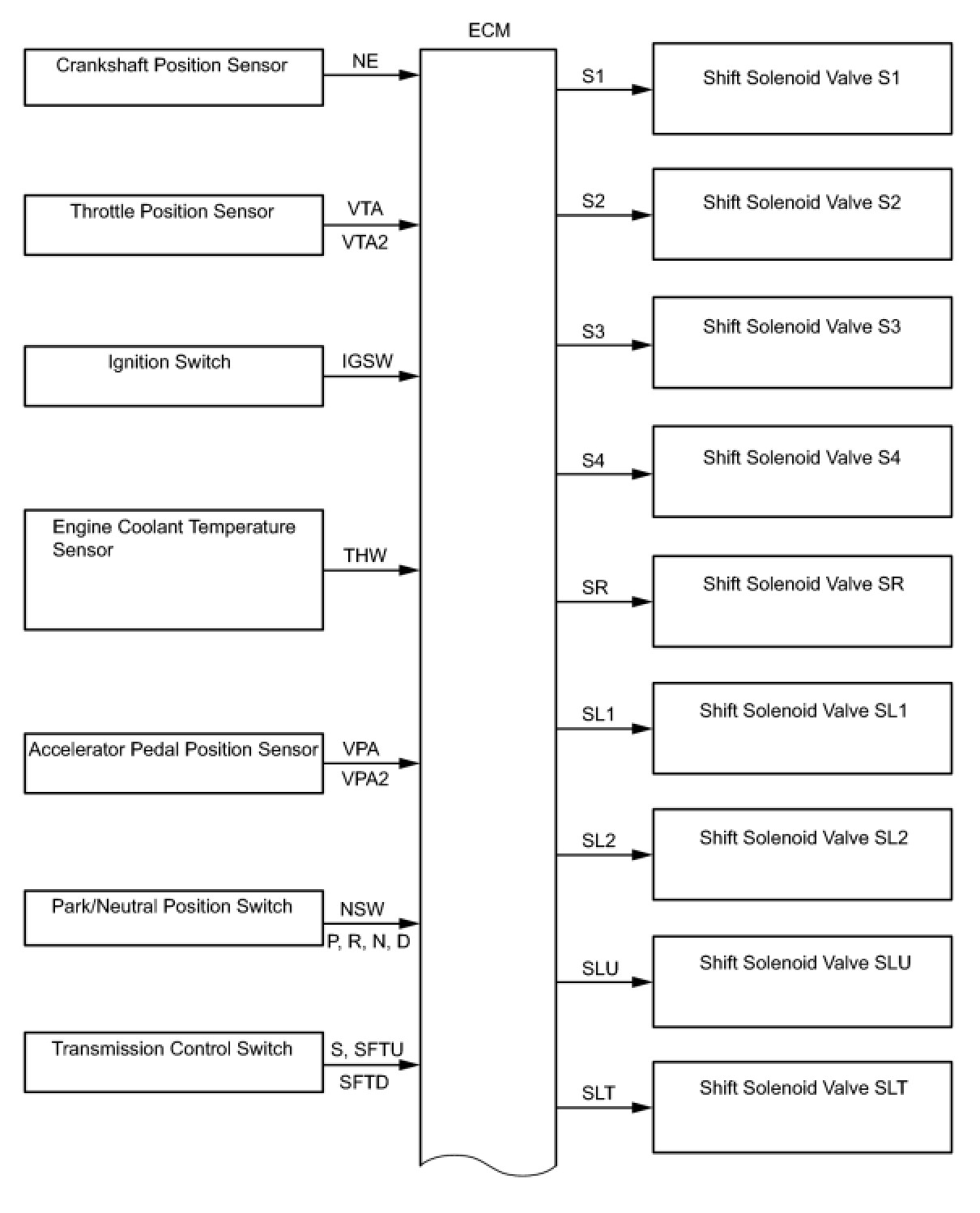

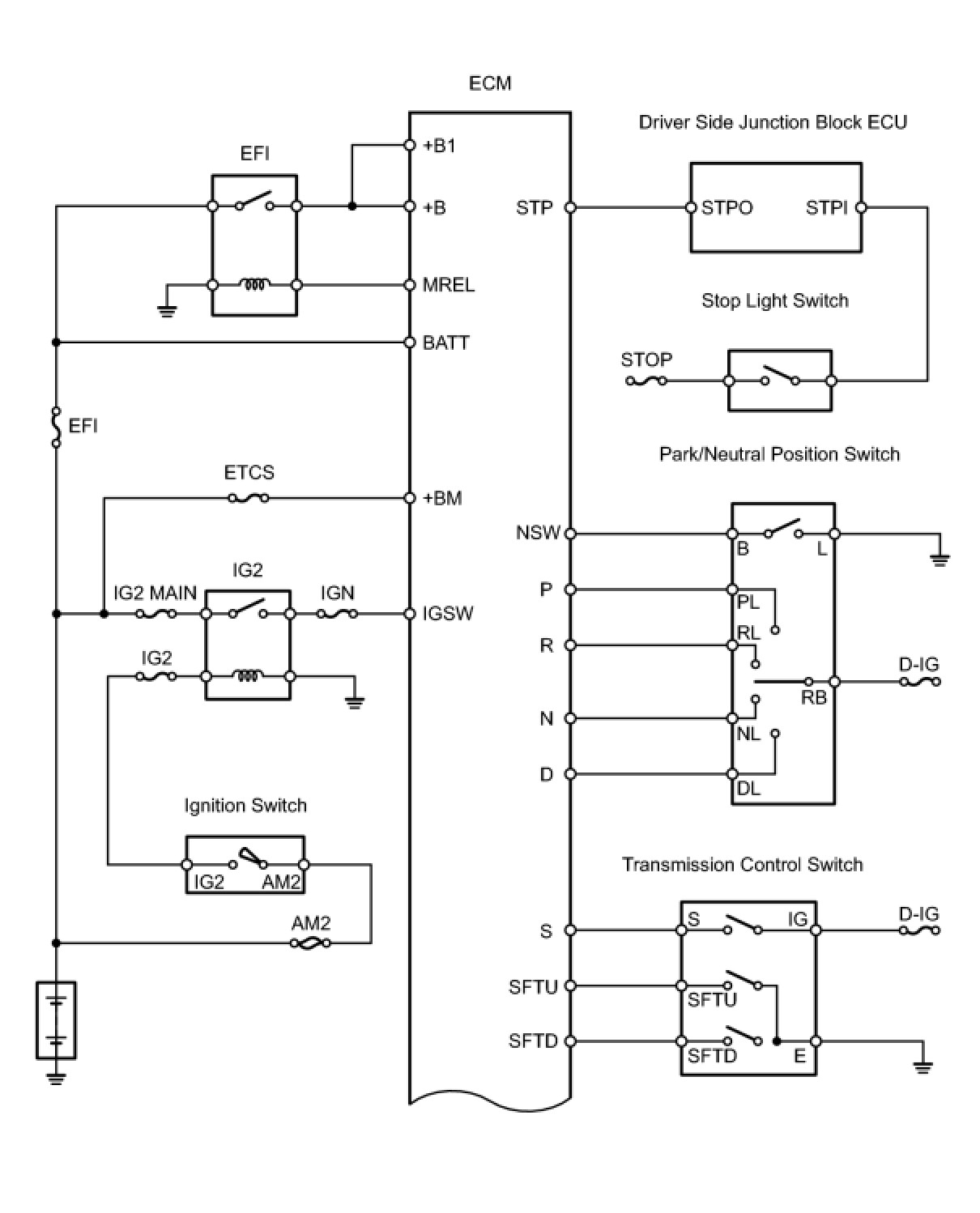

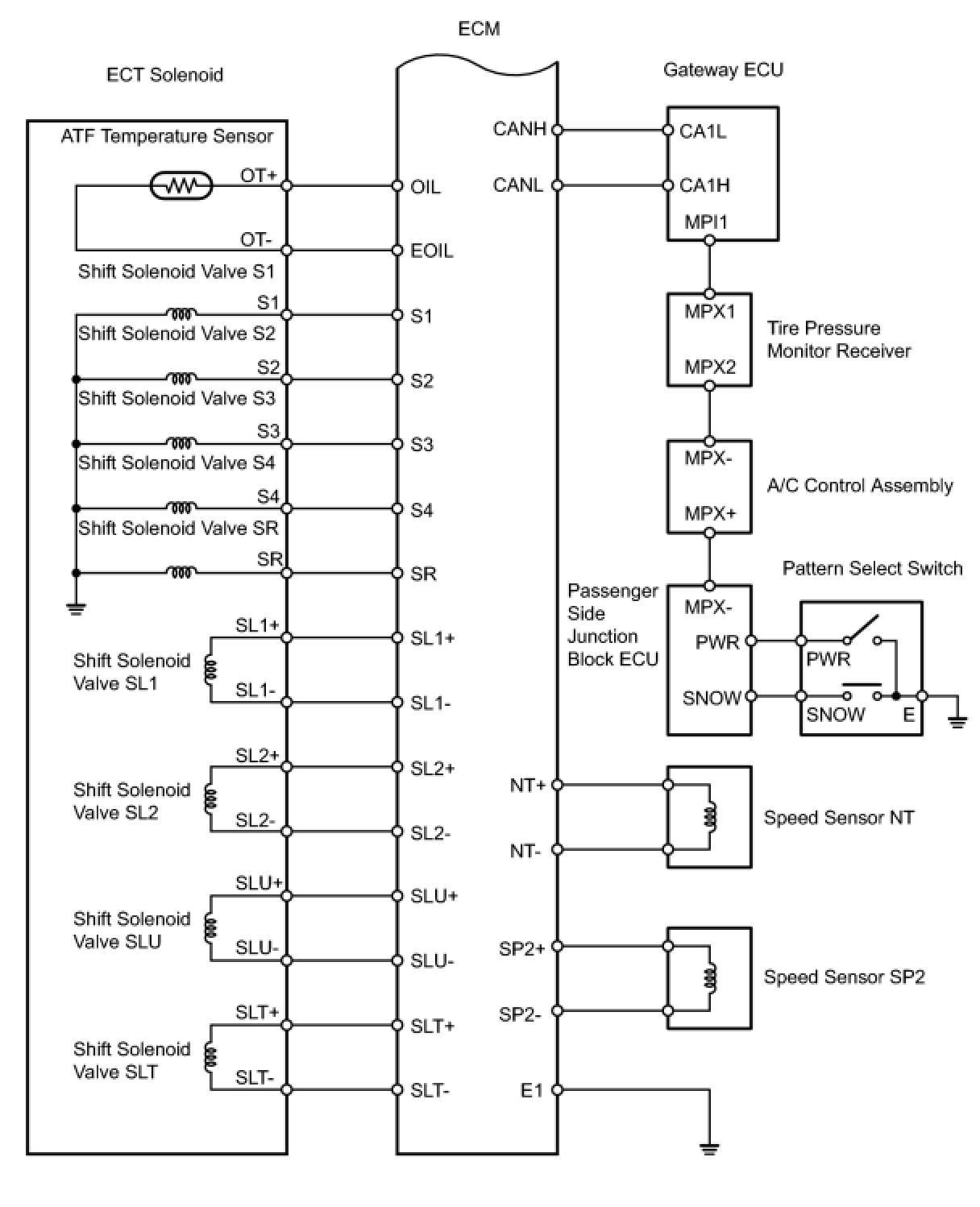

The configuration of the electronic control system in the A761E automatic transmission is as shown in the following chart.
