Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS
HINT: The following items can be customized.
NOTICE:
- Be sure to record the current settings before customizing.
- When the customer requests a change in a function, first make sure that the function(s) can be customized.
- When troubleshooting a function, first make sure that the function is set to the default setting.

1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

Multiplex tilt and telescopic ECU





2. AIR CONDITIONING SYSTEM

Air Conditioner

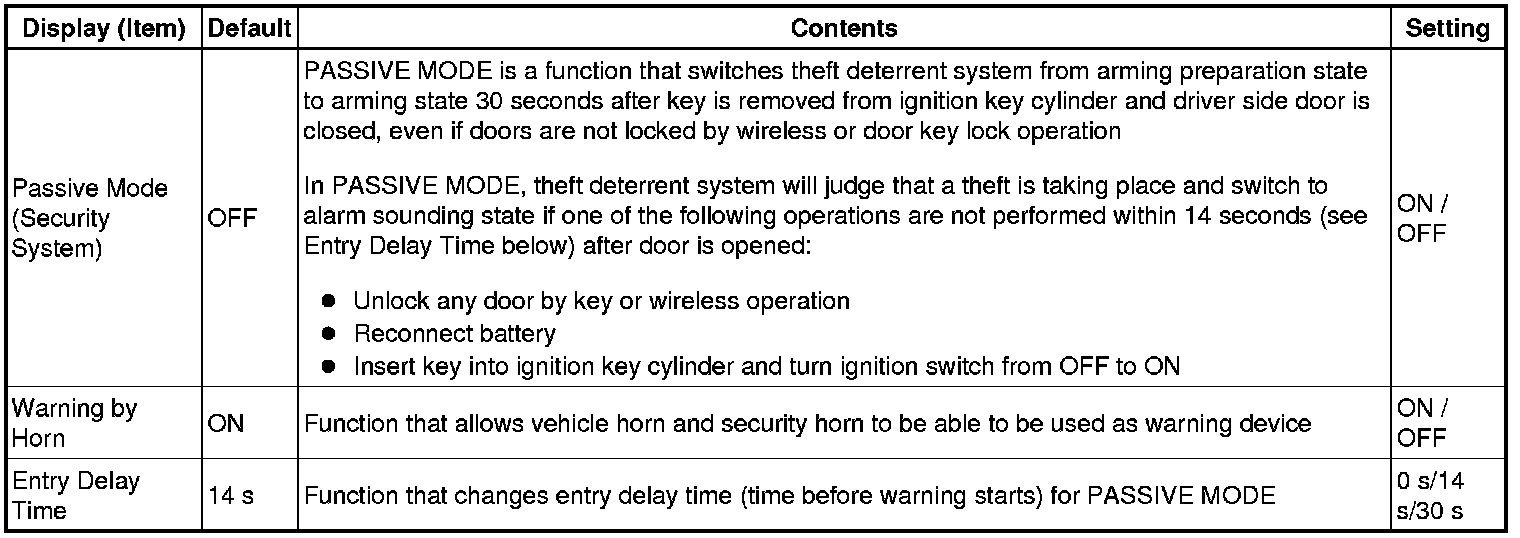

3. THEFT DETERRENT SYSTEM
(a) Selecting passive mode with Techstream

Security





(b) Selecting passive mode without Techstream












HINT:
- Initial mode is PASSIVE MODE OFF.
- If the ignition switch is turned ON, the changing operation will be canceled.
- *: Entry delay time

4. LIGHTING SYSTEM

Illuminated Entry





HINT: Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

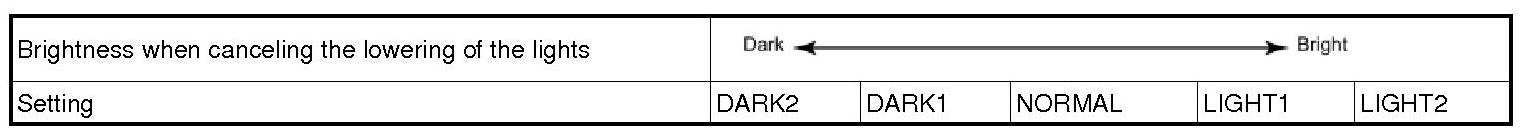

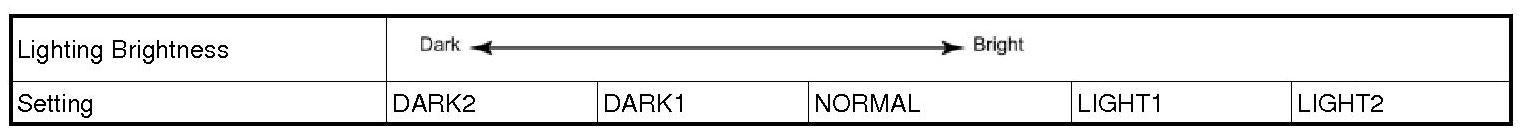

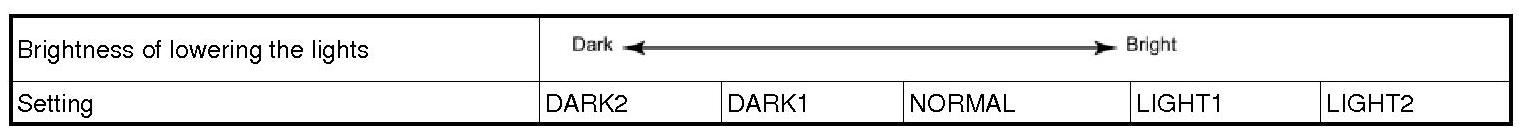

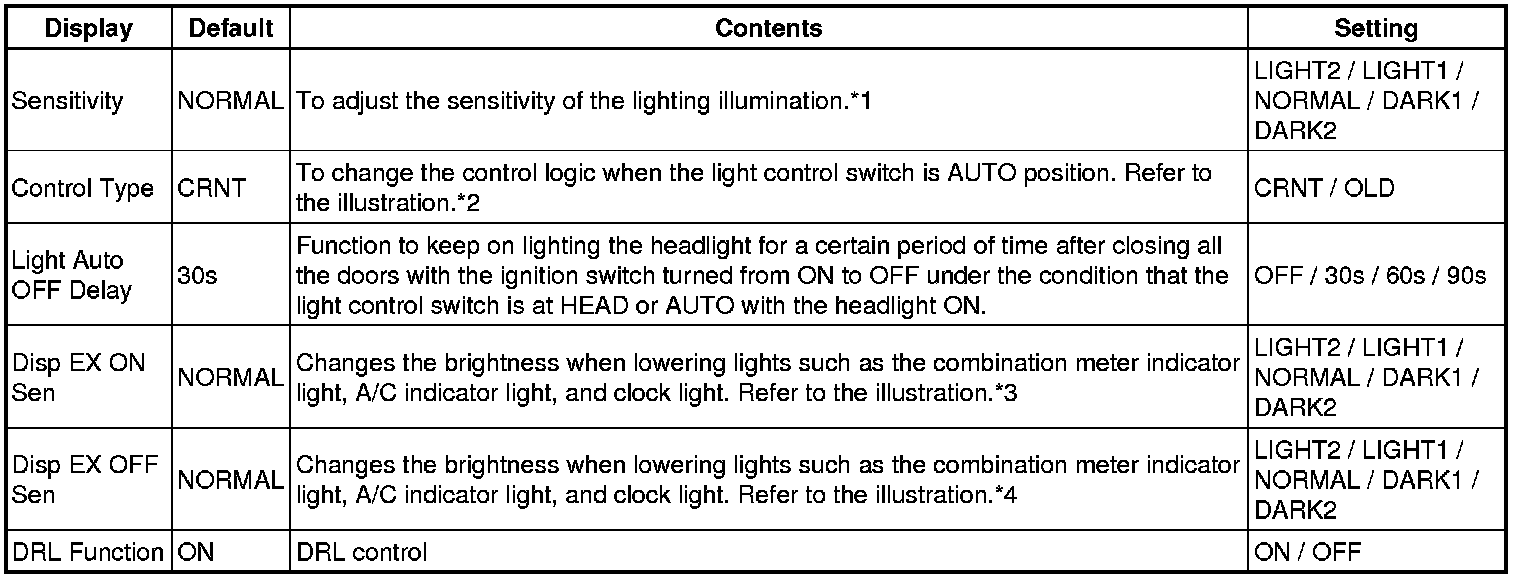

Light Control





Illustration *1





Illustration *2





HINT: **1: The new one has the logic to light up two times brighter than the old logic.
**2: Delay time until the headlight is turned on when it suddenly gets dark.

Illustration *3





Illustration *4





5. POWER DOOR LOCK CONTROL SYSTEM

Theft warning ECU:

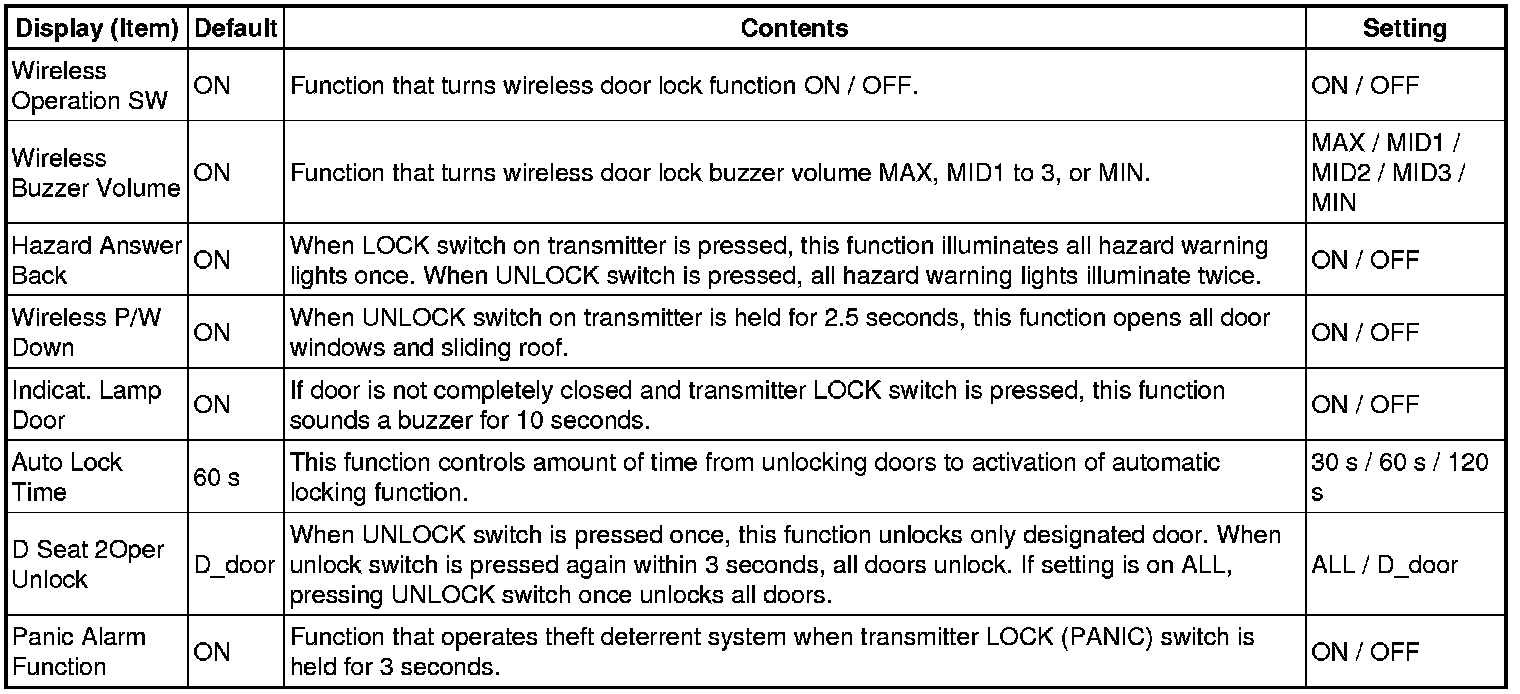

6. WIRELESS DOOR LOCK CONTROL SYSTEM

Wireless door lock control system:

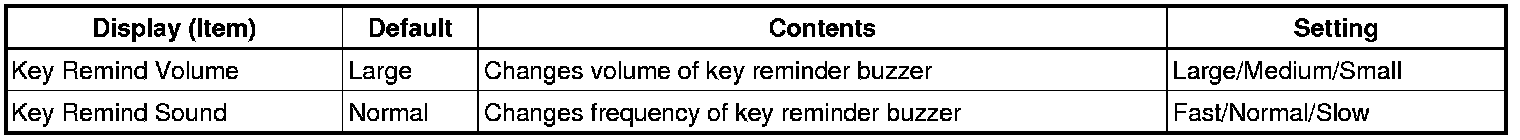

7. KEY REMINDER WARNING SYSTEM

Warning





8. METER / GAUGE SYSTEM

Warning:

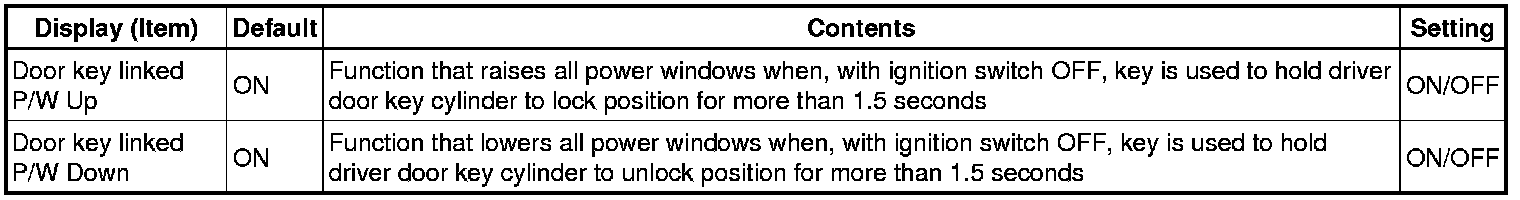

9. POWER WINDOW CONTROL SYSTEM

Power window control system:
