Front Stabilizer Bar

SUSPENSION: FRONT STABILIZER BAR: INSPECTION

INSPECTION





1. INSPECT FRONT STABILIZER LINK ASSEMBLY LH

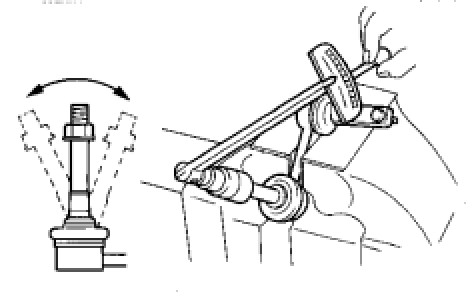

(a) As shown in the illustration, move the ball joint stud back and forth 5 times before installing the nut.
(b) Using a torque wrench, turn the nut continuously at a rate of 2 to 4 seconds per turn and take the torque reading on the fifth turn.
Standard turning torque:
0.05 to 1.5 N*m (0.5 to 15 kgf*cm, 0.4 to 13 in.*lbf)
(c) Check for any cracks or grease leaks on the ball joint dust cover.
