SUSPENSION: REAR NO. 2 SUSPENSION ARM: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY
(a) Remove the 10 bolts and ornament.
2. REMOVE REAR WHEEL
(a) Remove the 5 nuts and wheel.
3. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

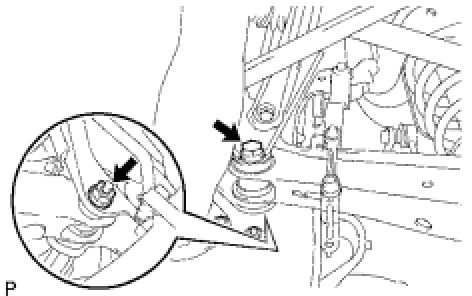

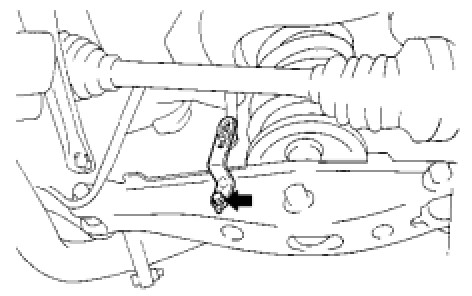

(a) Remove the bolt and nut, and disconnect the stabilizer link and the height control link from the rear No. 2 suspension arm.

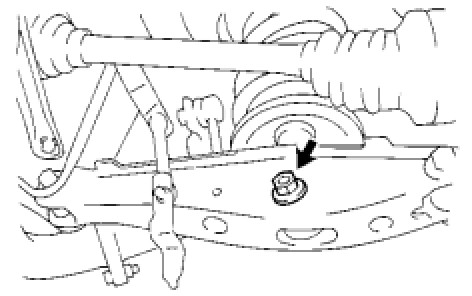

(b) Remove the bolt and nut, and disconnect the shock absorber from the rear No. 2 suspension arm.

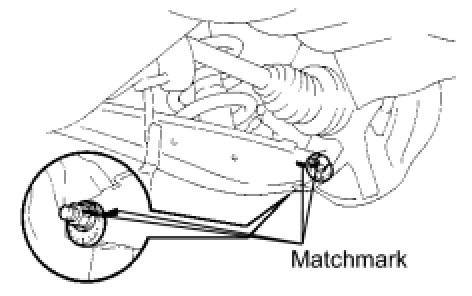

(c) Place matchmarks on the adjusting cam and rear No. 2 suspension arm.
(d) Remove the nut, camber adjusting cam No. 2 and camber adjusting cam No. 1. Then disconnect the rear No. 2 suspension arm from the axle carrier.





(e) Remove the bolt, nut, washer and rear No. 2 suspension arm.
