Components

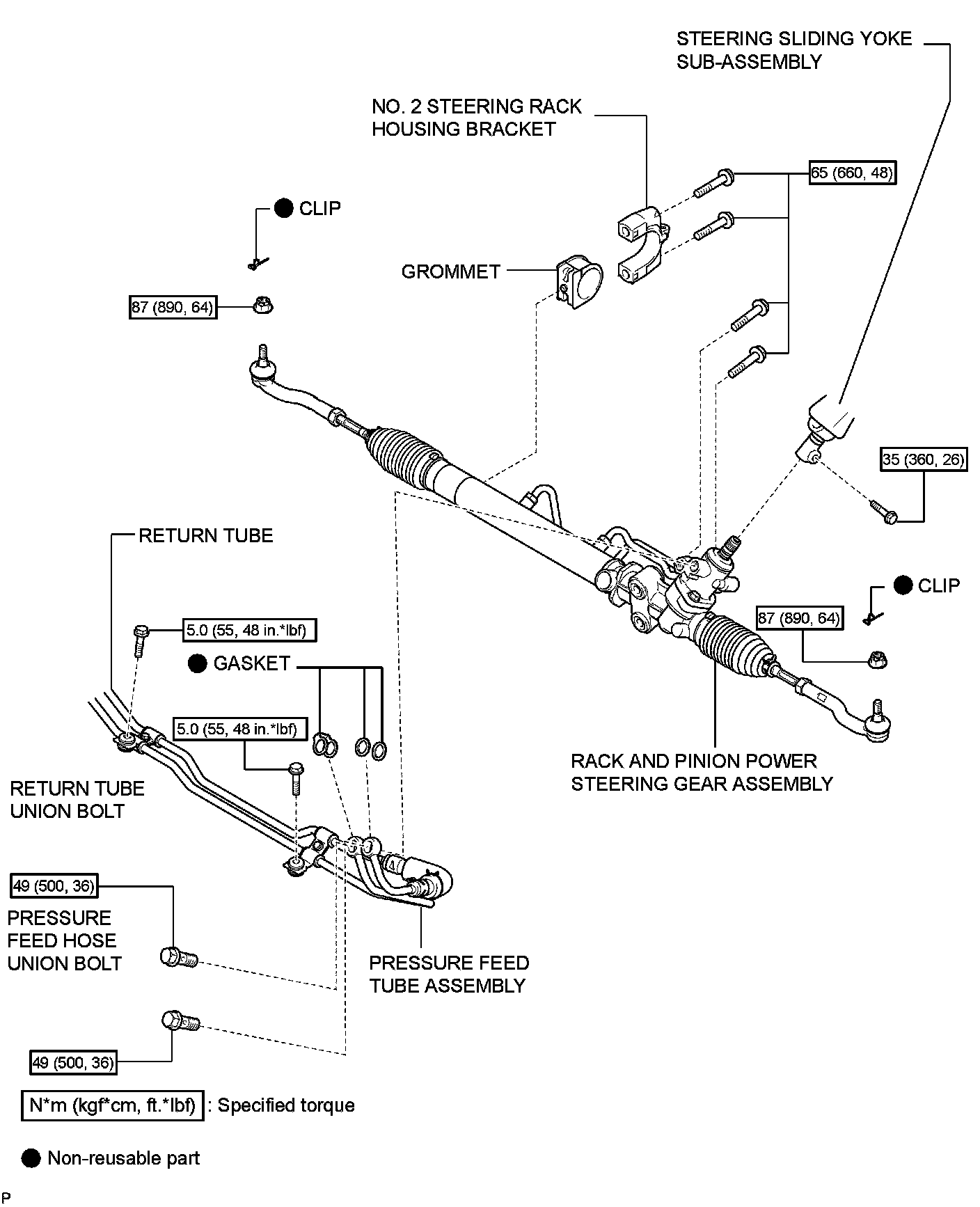

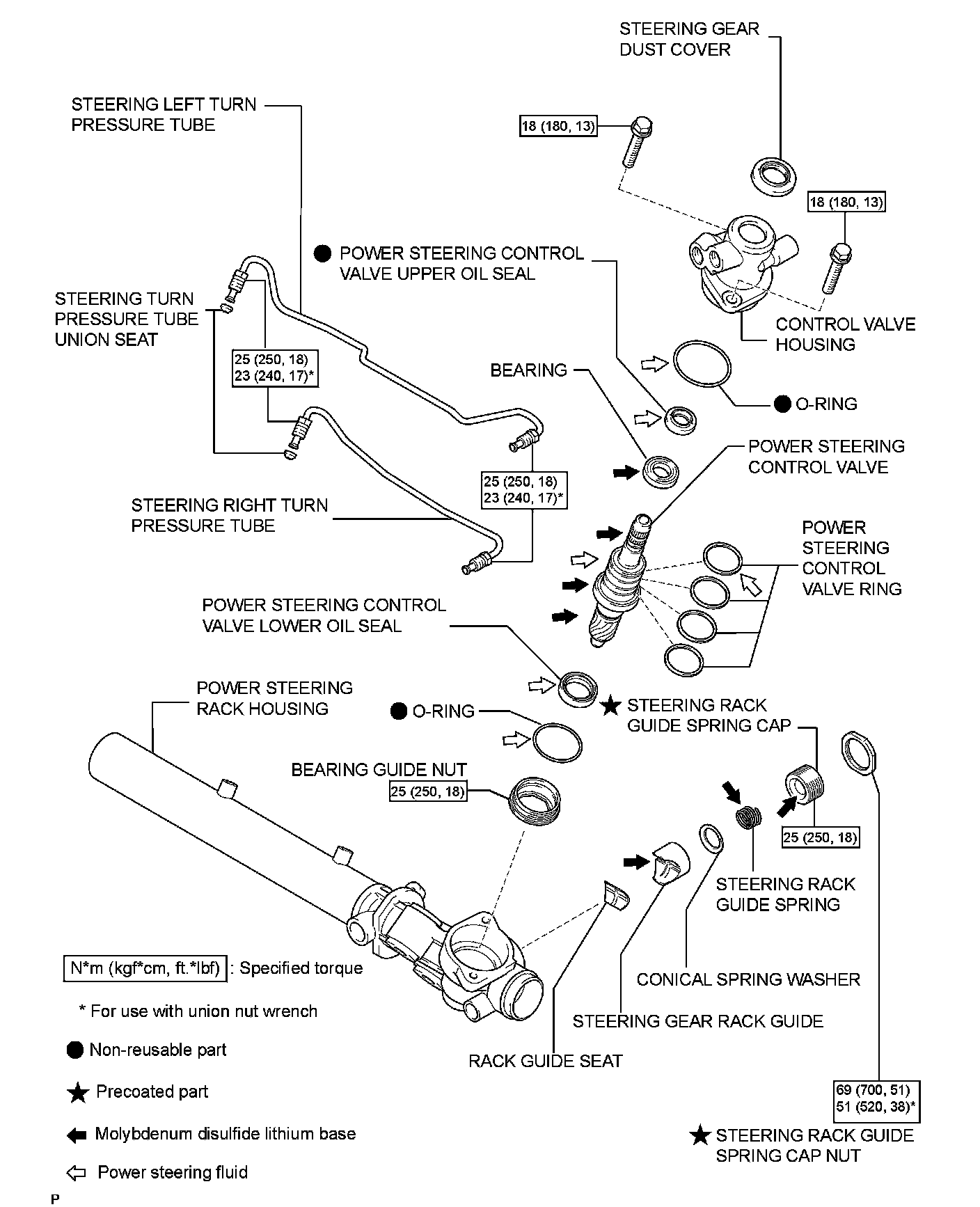

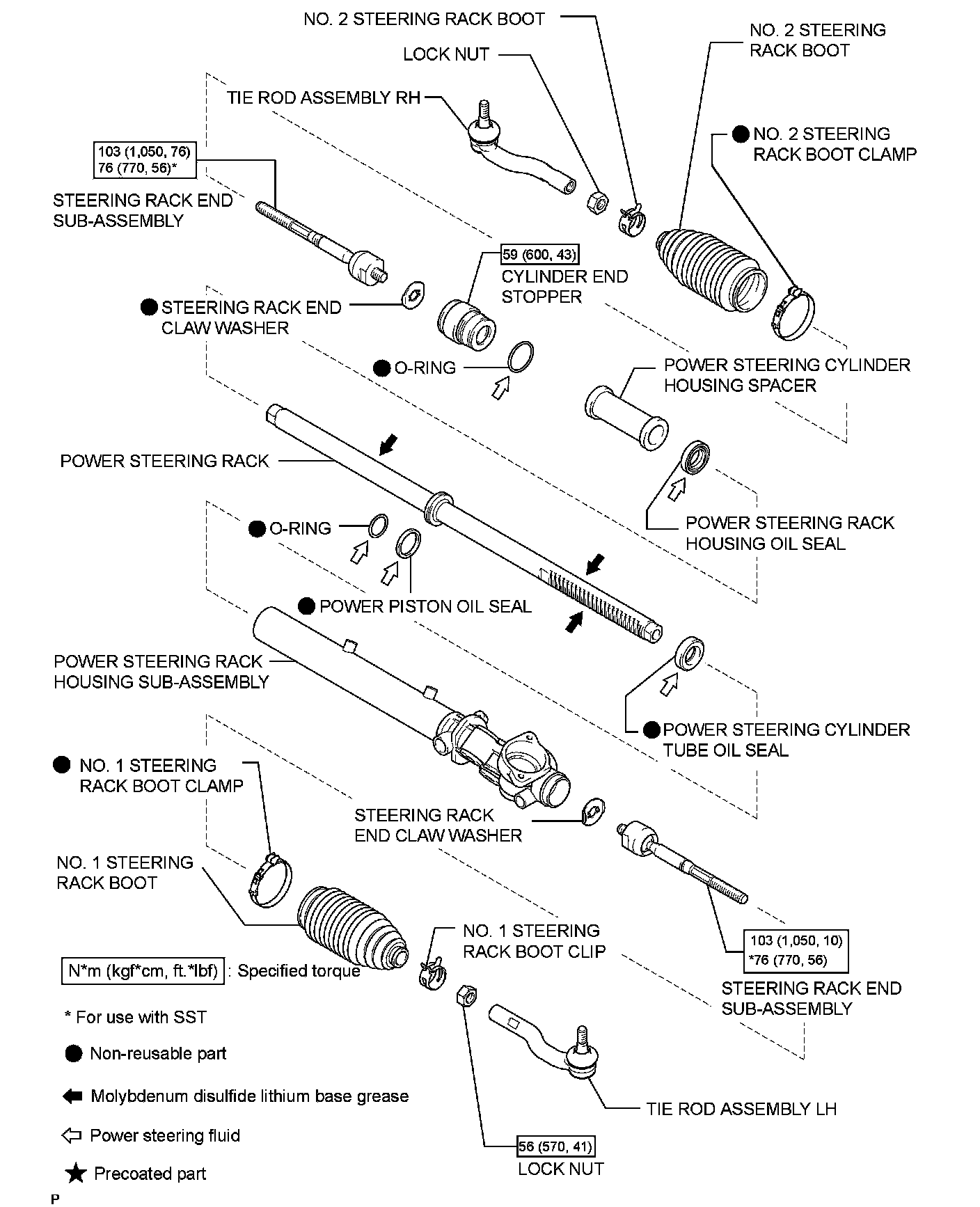

POWER STEERING: RACK AND PINION POWER STEERING GEAR: COMPONENTS

COMPONENTS

ILLUSTRATION
