Installation

POWER STEERING: VANE PUMP: INSTALLATION

INSTALLATION

1. INSTALL VANE PUMP ASSEMBLY
(a) Install the power steering vane pump with the nut.
Torque: 43 Nm (440 kgf-cm, 32 ft-lbf)
(b) Install the 2 bolts.
Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)





(c) Install the pressure feed tube and a new gasket to the pressure feed hose union bolt.

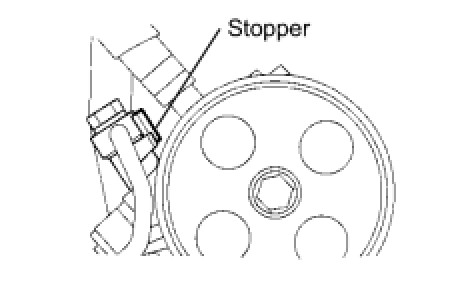

HINT: Make sure the stopper of the pressure feed tube touches the power steering vane pump body as shown in the illustration, then torque the union bolt.

Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
(d) Connect the return hose with the clip.
(e) Connect the 2 vacuum hoses with the 2 clips.
2. INSTALL FAN AND GENERATOR V BELT

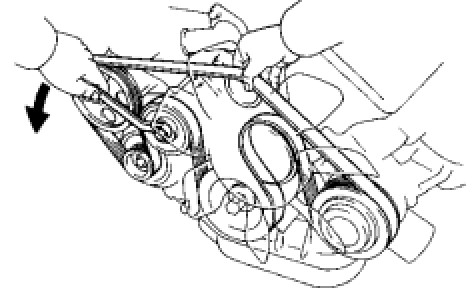

(a) Put a wrench on the drive belt tensioner set bolt.
(b) Turn the drive belt tensioner set bolt counterclockwise and hold it.
HINT: The drive belt tensioner set bolt has a left-hand thread. The drive belt tensioner set bolt loosens when it is turned clockwise.

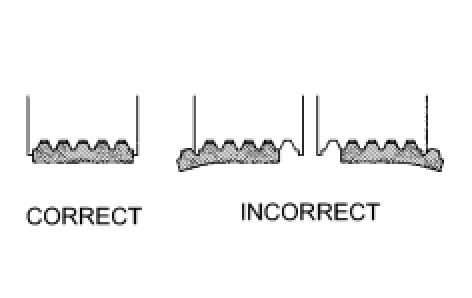

(c) Install the fan and generator V belt.
(d) Release the drive belt tensioner.
HINT: The drive belt tensioner is an auto tensioner.

3. INSTALL AIR CLEANER ASSEMBLY
(a) Install the air cleaner with the 3 bolts.
(b) Install the clamp.
(c) Connect the MAF meter connector.
4. INSTALL NO. 1 AIR CLEANER INLET
(a) Install the air cleaner inlet with the bolt.
5. INSTALL ENGINE UNDER COVER REAR RH
(a) Install the under cover with the 2 bolts.
6. INSTALL ENGINE UNDER COVER
(a) Install the under cover with the 16 bolts.
7. BLEED AIR FROM POWER STEERING SYSTEM Power Steering System
8. INSPECT POWER STEERING FLUID LEAK
