Installation

OTHER SYSTEM: POWER OUTLET SOCKET: INSTALLATION

INSTALLATION





1. INSTALL POWER OUTLET SOCKET ASSEMBLY

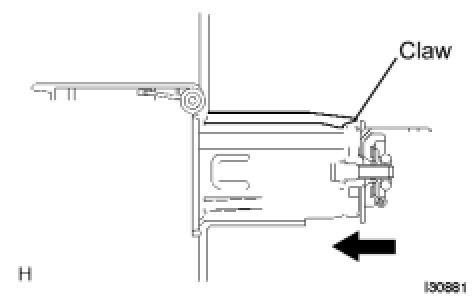

(a) Align the claw of the socket with the cutout of the cover and fully push it in to install.
2. INSTALL POWER OUTLET SOCKET COVER
(a) Install the cover to the console box.
3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
4. INSTALL REAR CONSOLE UPPER PANEL GARNISH Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
