Removal

3UZ-FE CHARGING: GENERATOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 AIR CLEANER INLET Removal
3. REMOVE V-BANK COVER Removal
4. REMOVE ENGINE UNDER COVER
5. REMOVE FAN AND GENERATOR V BELT Removal

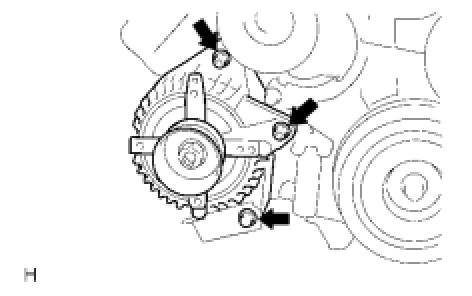

6. REMOVE VANE PUMP PULLEY





(a) Using SST, remove the nut and vane pump pulley.
SST: 09960-10010
7. REMOVE GENERATOR ASSEMBLY
(a) Disconnect the generator connector.
(b) Remove the rubber cap and nut, and disconnect the generator wire.
(c) Remove the bolt and disconnect the engine wire bracket.





(d) Remove the 2 nuts, bolt and generator.
NOTE:
If the stud bolt of the nut is loose, replace the stud bolt.
