Torque Specifications








SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

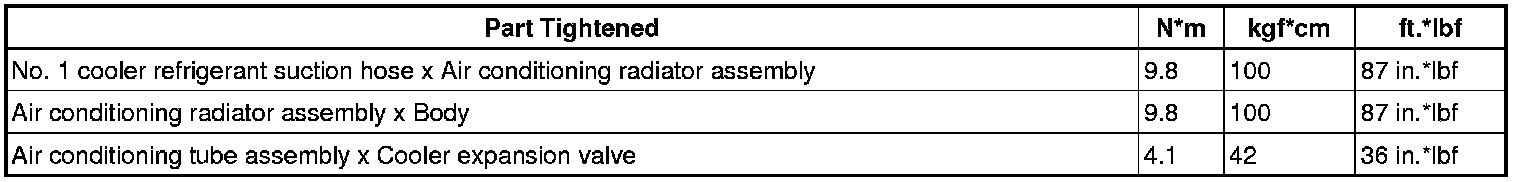

REFRIGERANT LINE





AIR CONDITIONING AND BLOWER UNIT

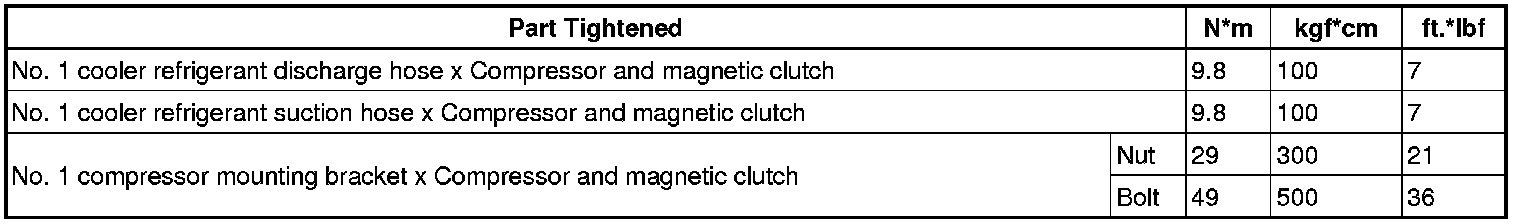

COMPRESSOR AND MAGNETIC CLUTCH

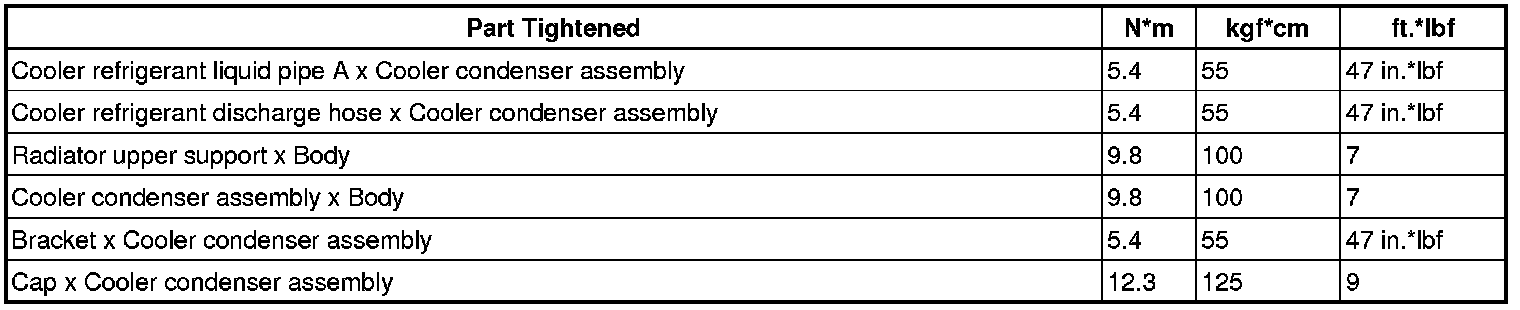

CONDENSER
