System Specifications

Cylinder head Cylinder block side:
Maximum warpage 0.05 mm (0.0020 in.)

Cylinder head set bolt
Standard outside diameter 9.770 to 9.960 mm (0.3846 to 0.3921 in.)
Minimum outside diameter 9.70 mm (0.3819 in.)





Exhaust manifold LH x Cylinder head 44 Nm (449 kgf-cm, 32 ft.lbf)
Exhaust manifold RH x Cylinder head 44 Nm (449 kgf-cm, 32 ft.lbf)
Exhaust manifold sub-assembly x Cylinder head 44 Nm (449 kgf-cm, 32 ft.lbf)

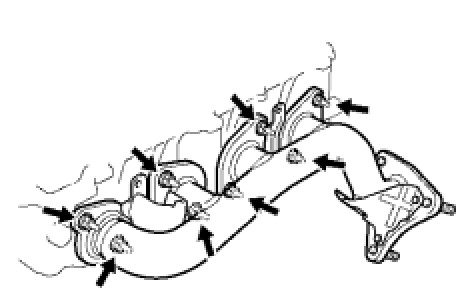

Install the exhaust manifold with the 8 nuts. Uniformly tighten the nuts in several passes.

Intake manifold assembly x Cylinder head 18 Nm (184 kgf-cm, 13 ft.lbf)








Cylinder head x Cylinder block
1st 59 Nm (602 kgf-cm, 44 ft.lbf)
2nd Turn 90°

Bank 1




Bank 2




Camshaft bearing cap x Cylinder head
Front bearing cap (w/o seal washer) 7.5 Nm (76 kgf-cm, 66 in.*lbf)
Others 16 Nm (163 kgf-cm, 12 ft.lbf)

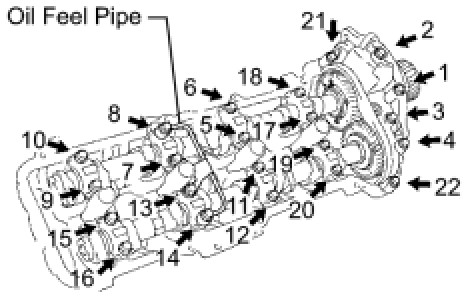

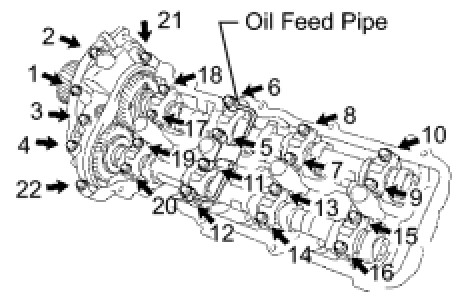

Camshaft bearing cap x Cylinder head
for 21 and 22 bolts 16 Nm (163 kgf-cm, 12 ft.lbf)

Camshaft bearing cap x Cylinder head
for other bolts 7.5 Nm (76 kgf-cm, 66 in.*lbf)

Camshaft timing pulley x Camshaft timing tube assembly 7.5 Nm (76 kgf-cm, 66 in.*lbf)
Camshaft drive gear x Camshaft timing tube assembly 7.5 Nm (76 kgf-cm, 66 in.*lbf)
