Torque Specifications

SERVICE SPECIFICATIONS: A761E AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

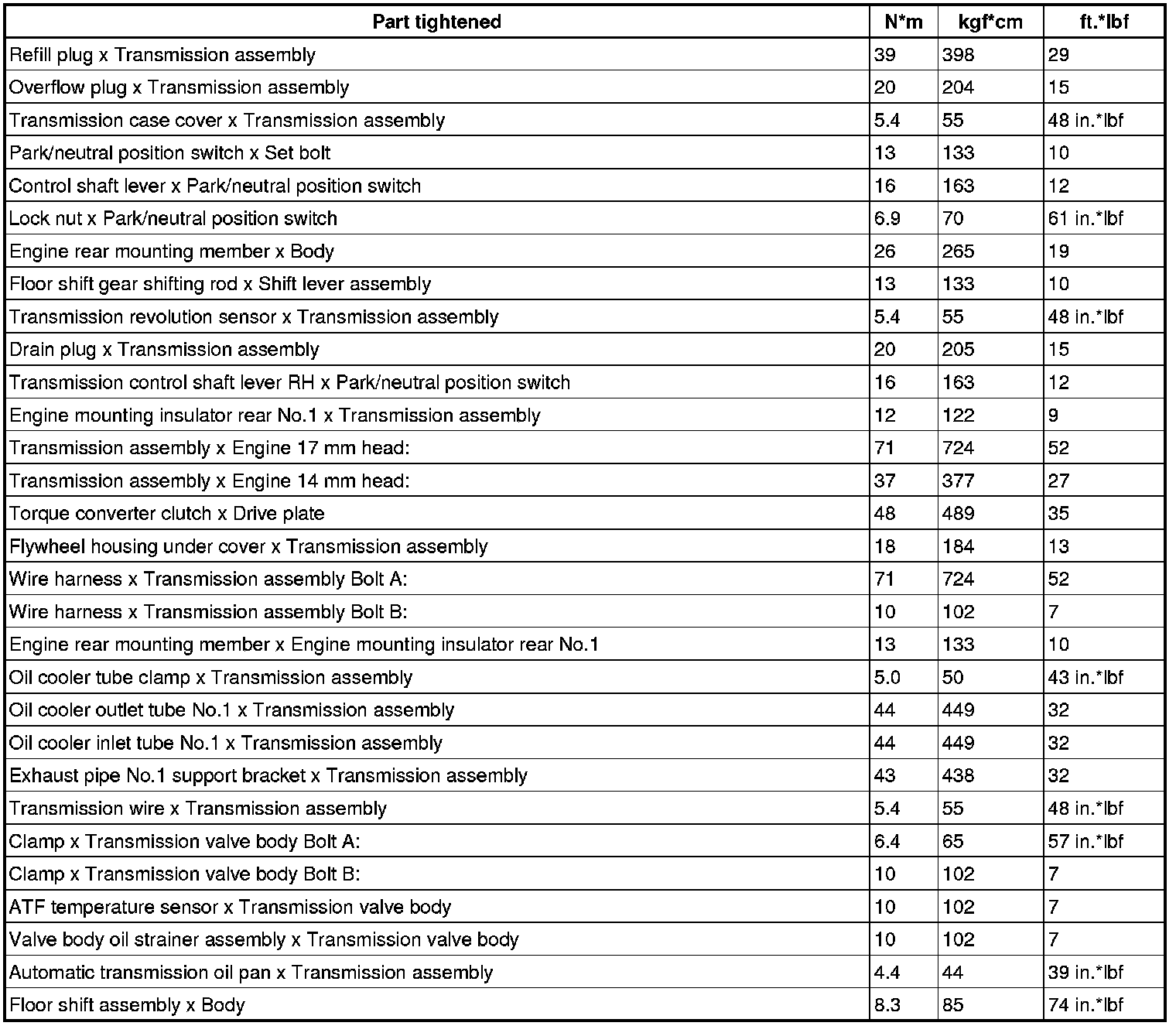

AUTOMATIC TRANSMISSION ASSEMBLY

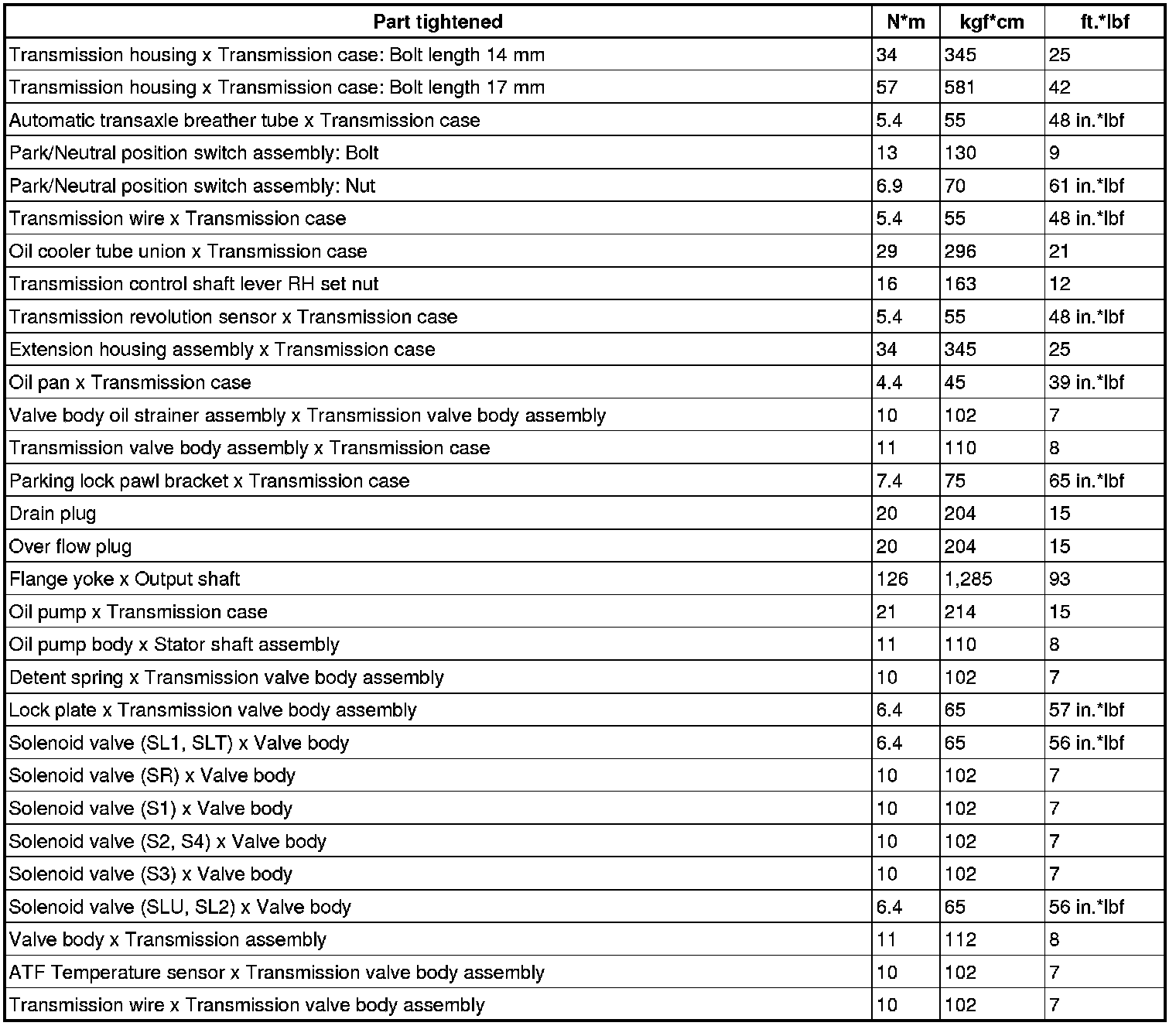

AUTOMATIC TRANSMISSION UNIT





Drive plate & ring gear sub-assembly x Crankshaft
1st 49 Nm (500 kgf-cm, 36 ft.lbf)
2nd Turn 90°
