Service Data

SERVICE SPECIFICATIONS: A761E AUTOMATIC TRANSMISSION: SERVICE DATA

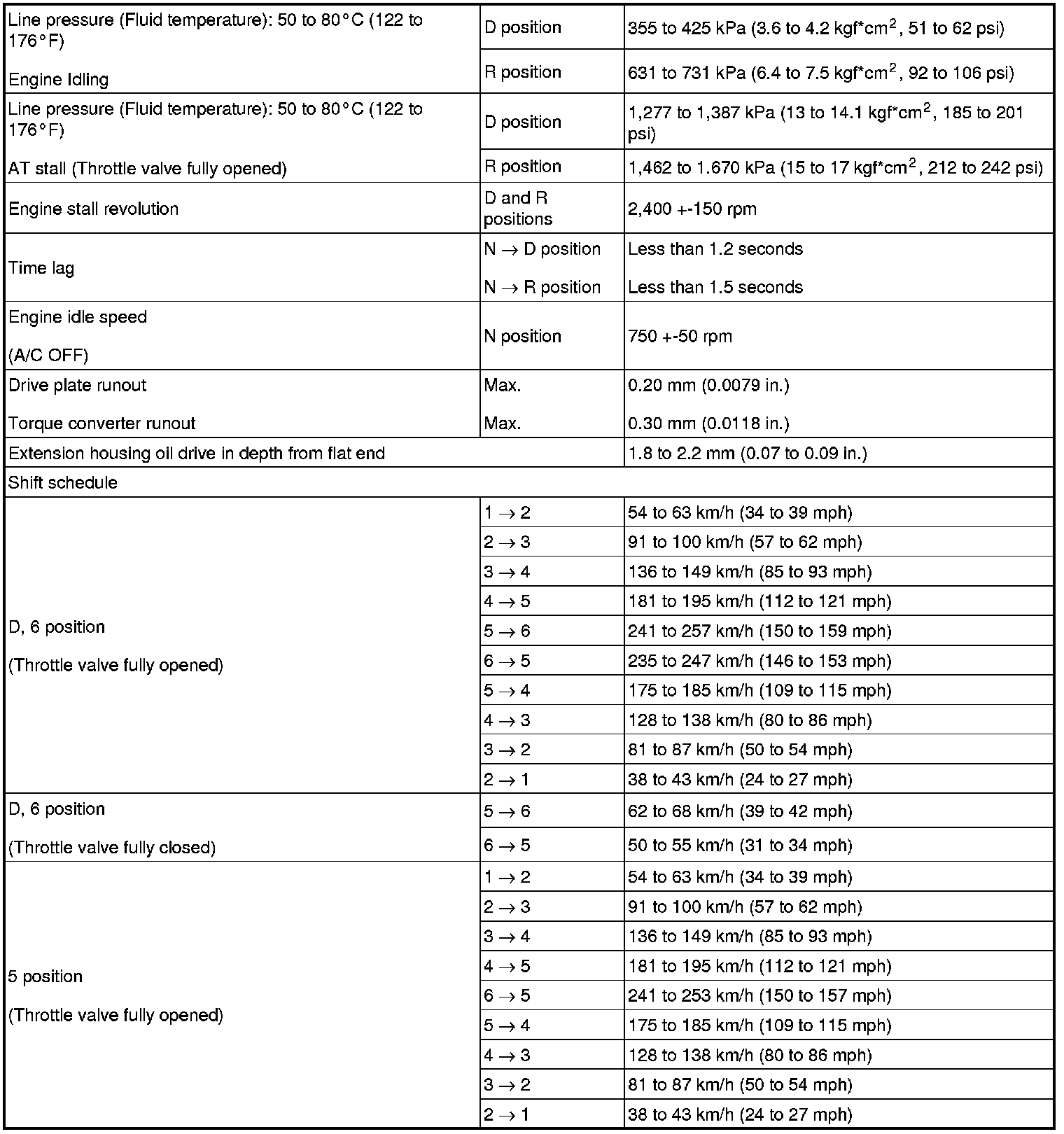

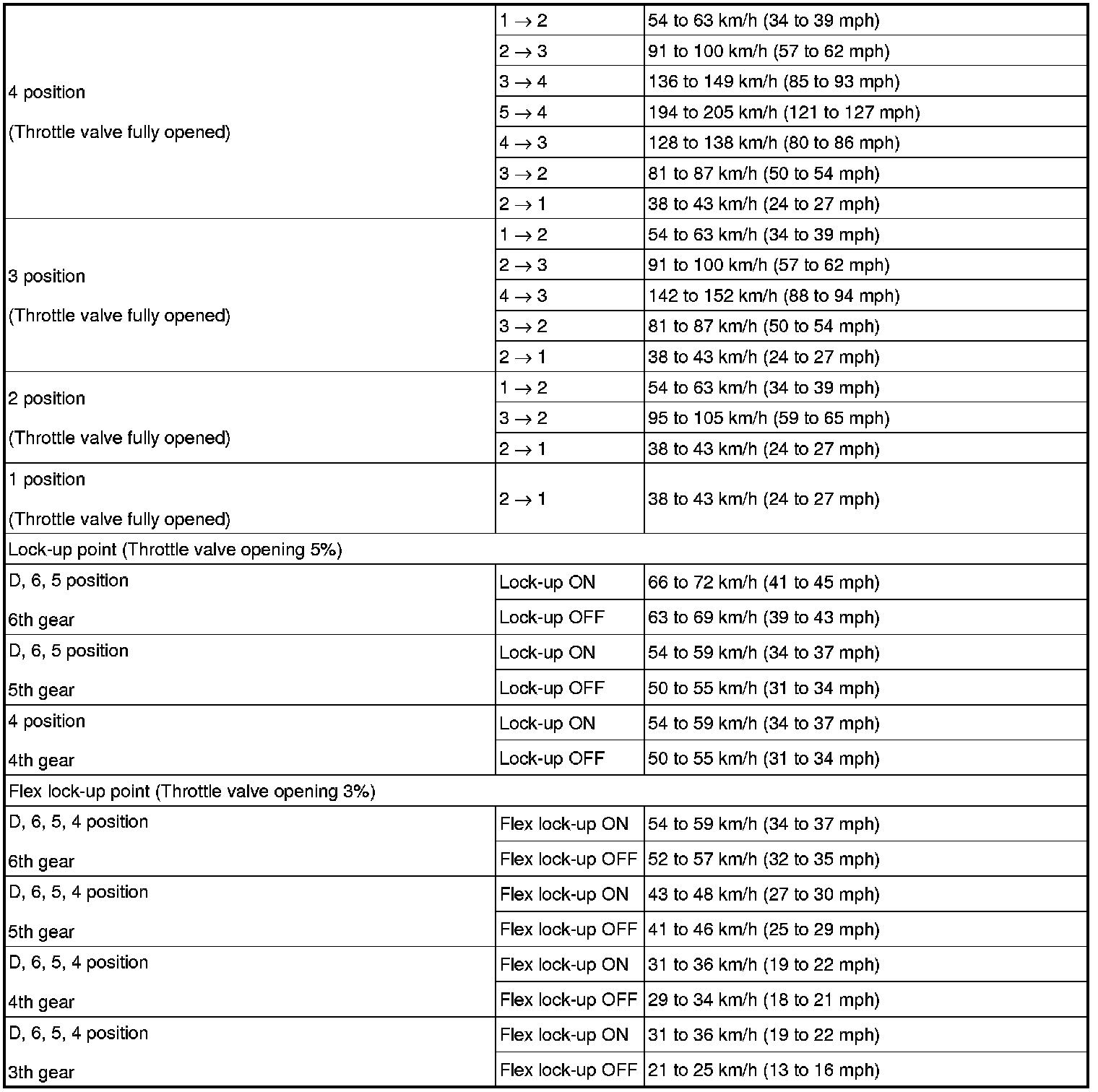

SERVICE DATA









NOTICE:
- All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
- If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

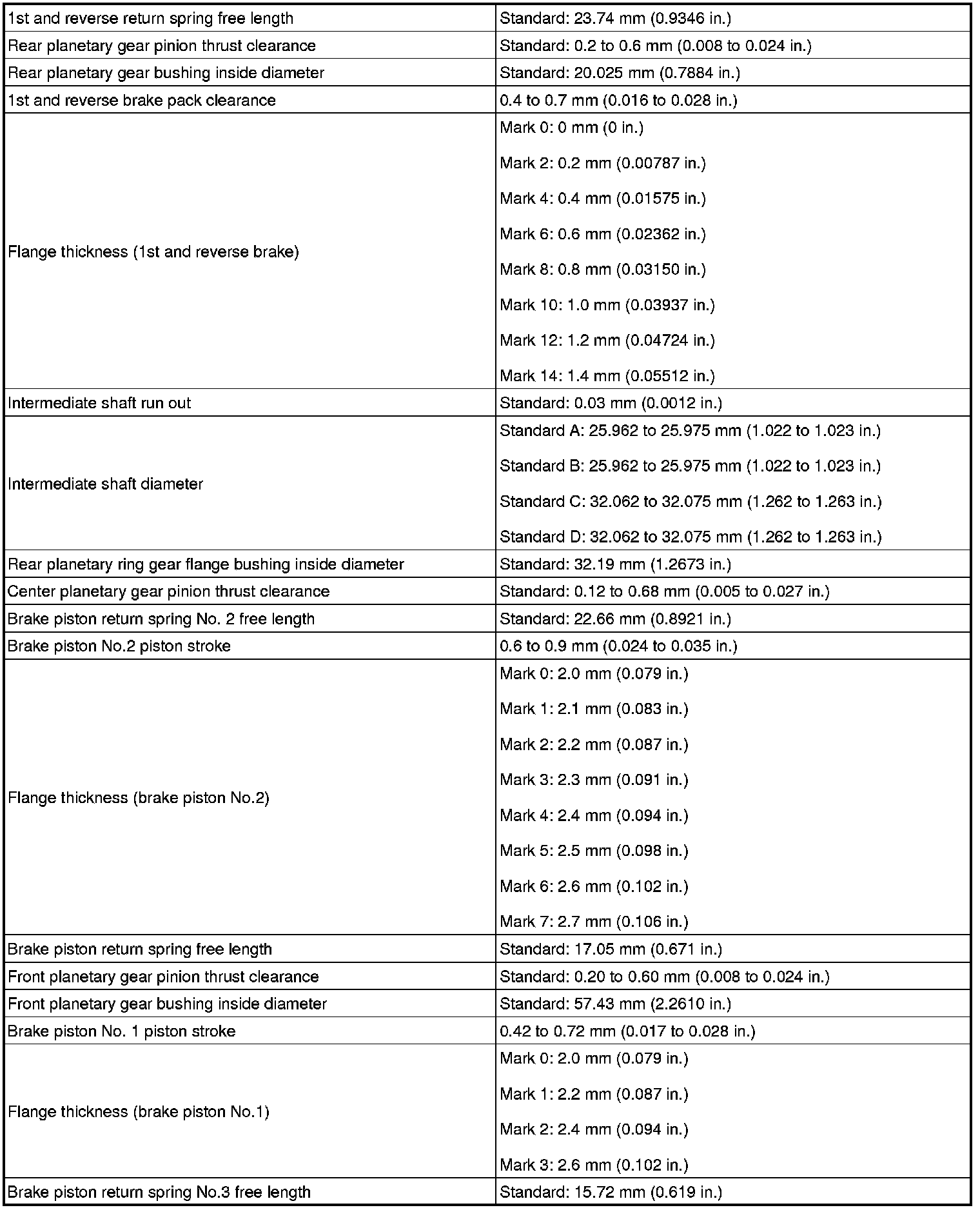

AUTOMATIC TRANSMISSION UNIT





OIL PUMP

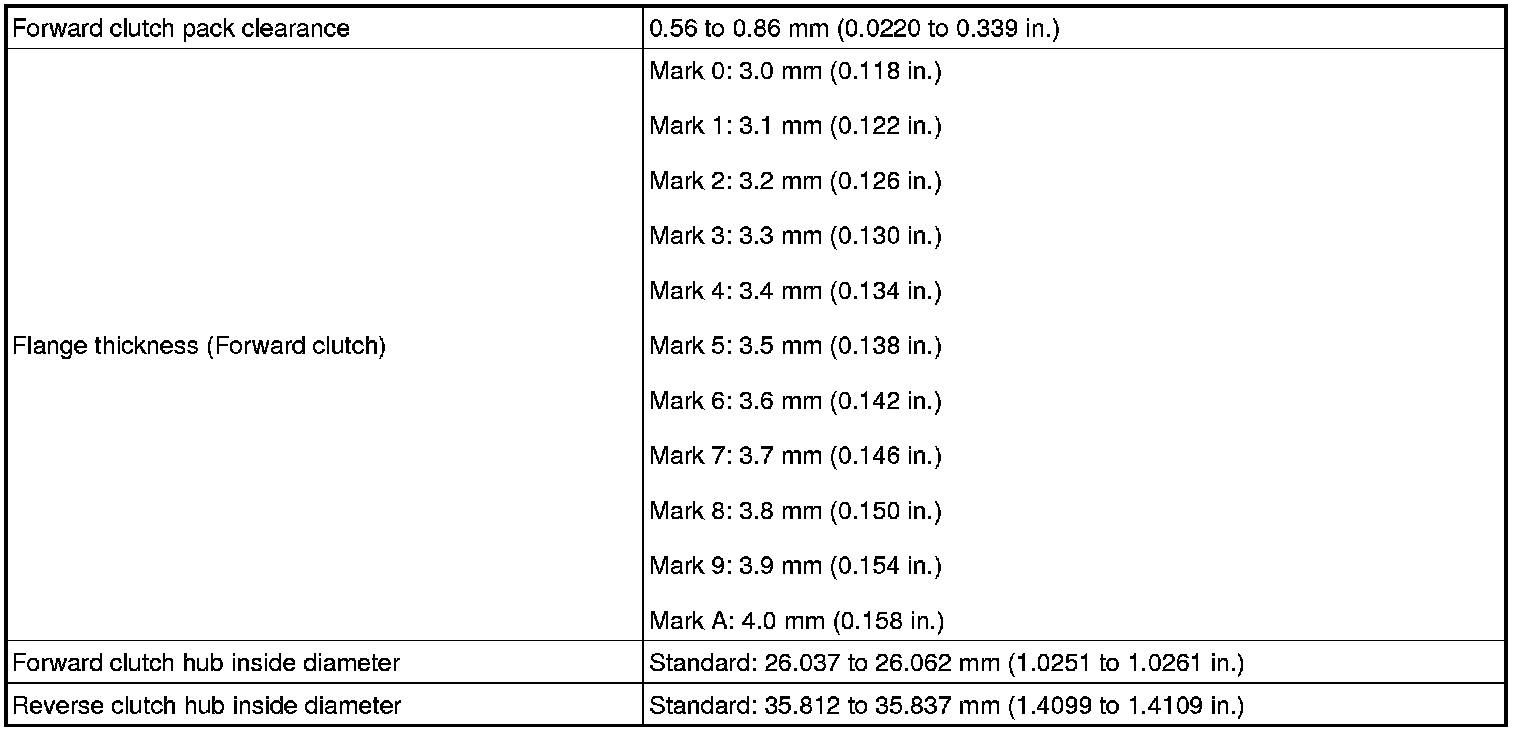

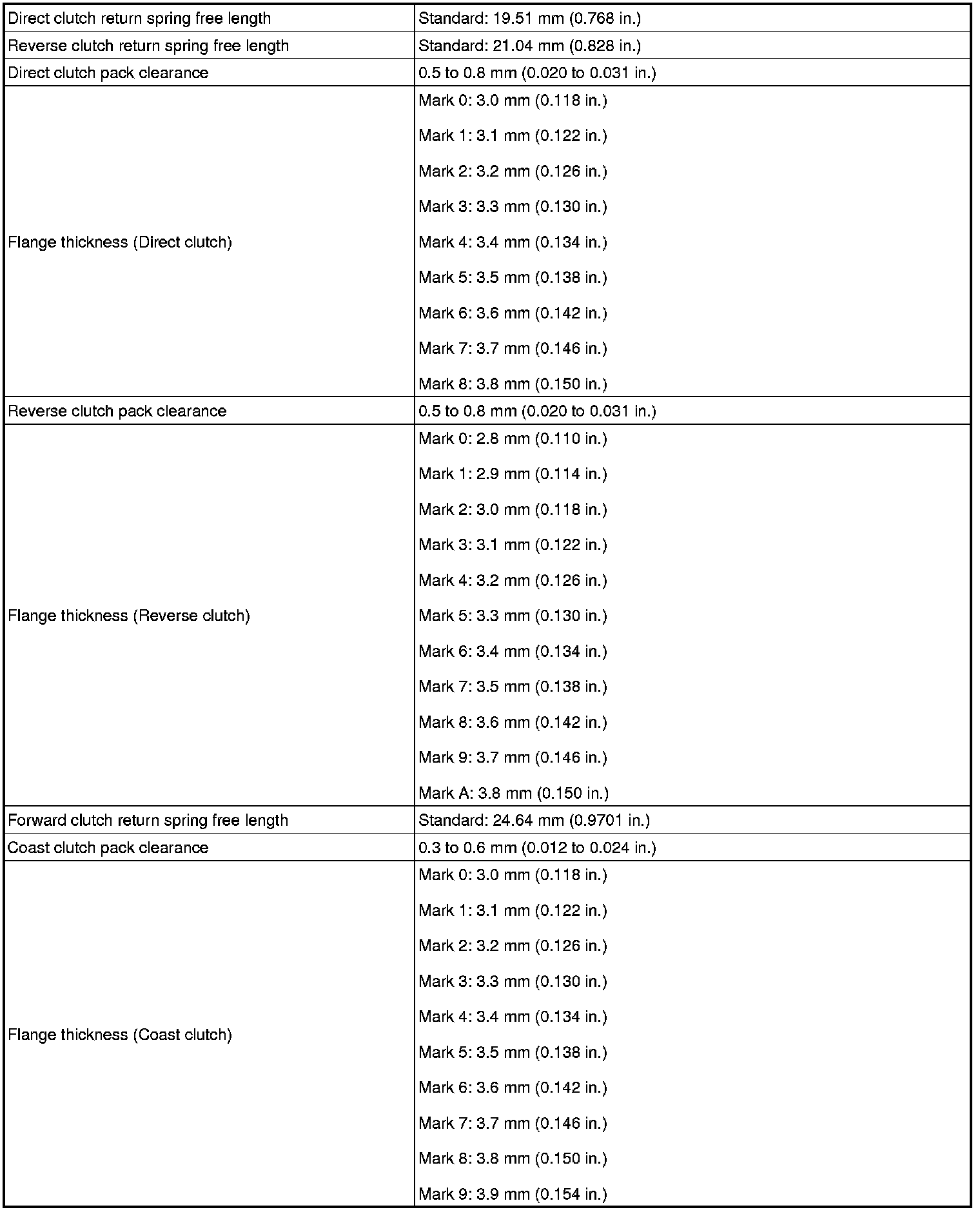

CLUTCH DRUM AND INPUT SHAFT









ACCUMULATOR





OUTPUT SHAFT BEARING
