Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

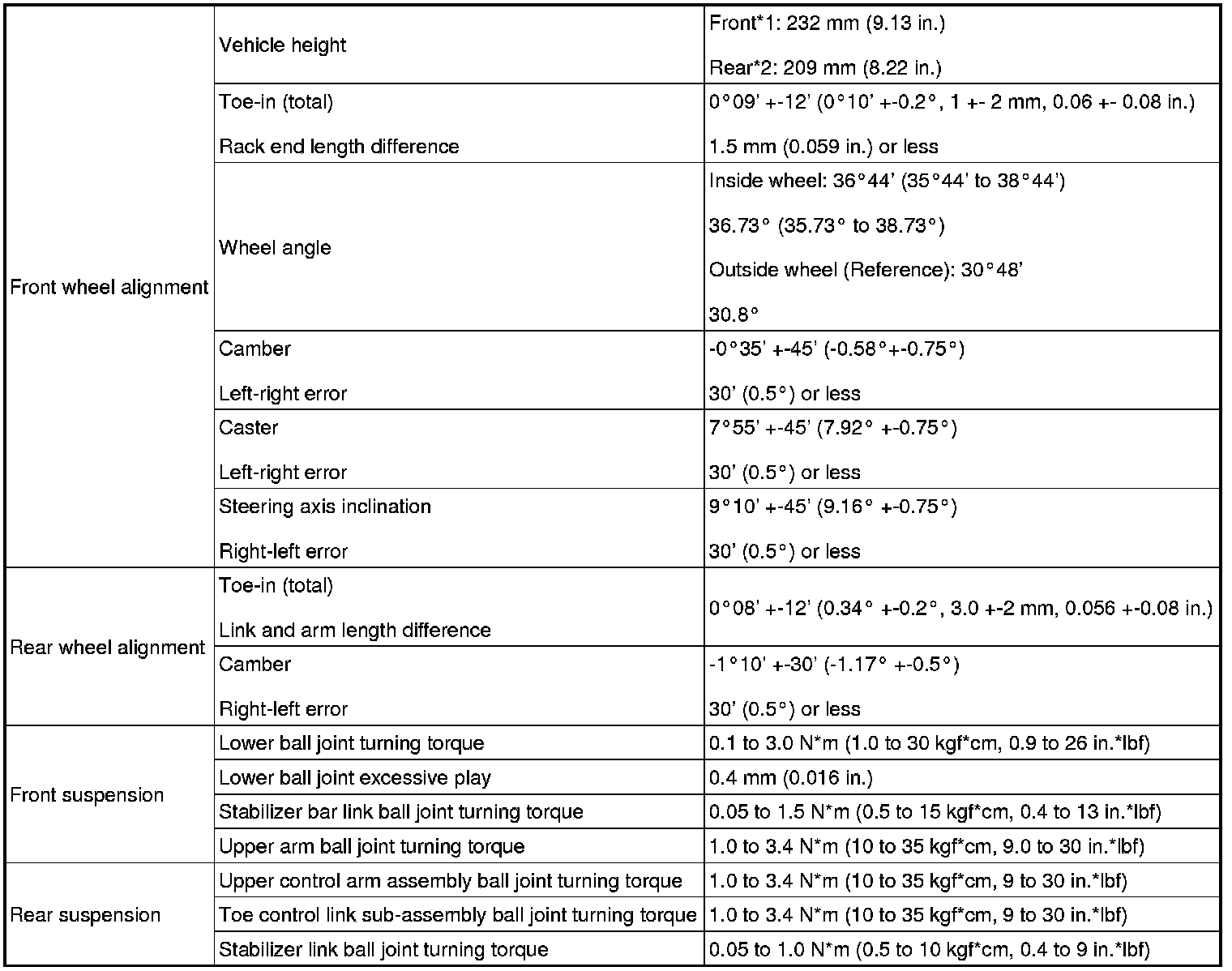

SERVICE DATA





- *1: Measure the distance from the ground to the center of the lower suspension arm mounting bolt.
- *2: Measure the distance from the ground to the center of the lower suspension arm No. 2 mounting bolt.
