Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSPECTION

INSPECTION

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY





(a) Measure the resistance of the switch when the switch is operated.

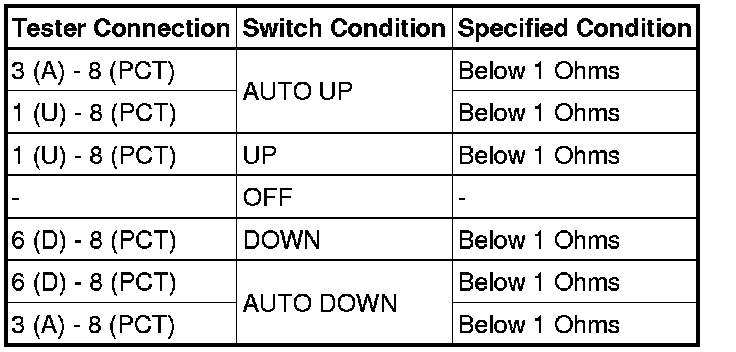

Standard resistance:





If the result is not as specified, replace the regulator switch assembly.
