Removal

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT AIRBAG SENSOR: REMOVAL

REMOVAL
CAUTION:
Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ENGINE UNDER COVER Removal

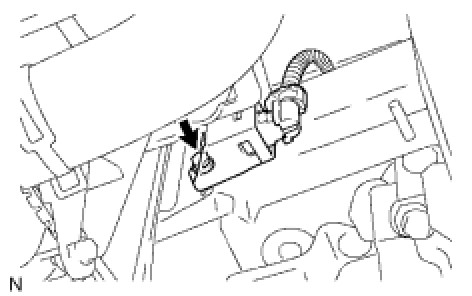

3. REMOVE FRONT AIRBAG SENSOR LH





(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.

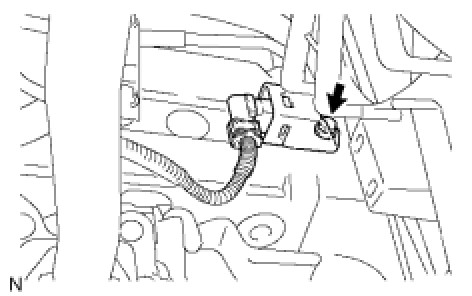

4. REMOVE FRONT AIRBAG SENSOR RH





(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.
