Brake Light Switch: Testing and Inspection

LIGHTING: STOP LIGHT SWITCH: INSPECTION

INSPECTION





1. INSPECT STOP LIGHT SWITCH ASSEMBLY
(a) Measure the resistance of the switch.

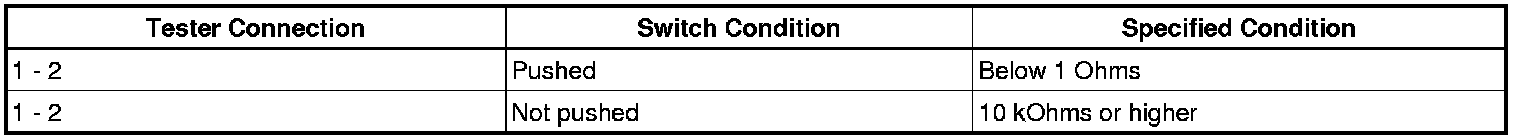

Standard resistance:





If the result is not as specified, replace the switch assembly.
