Removal

BRAKE CONTROL: FRONT SPEED SENSOR: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT SPEED SENSOR LH

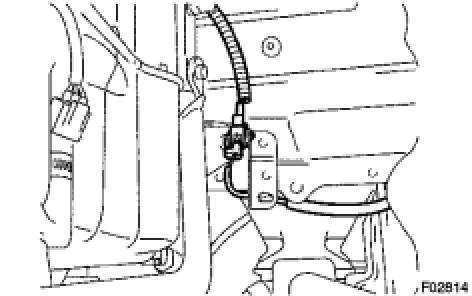

(a) Disconnect the sensor connector.
(b) Remove the resin clip and 2 clamp bolts holding the sensor harness.

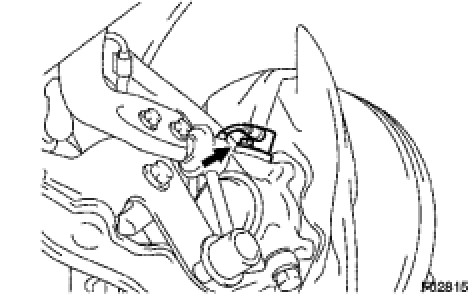

(c) Remove the bolt and sensor.
NOTE:
Keep the sensor tip free from foreign matter.
