Roof Position Limit Switch

CONVERTIBLE: ROOF POSITION LIMIT SWITCH: INSPECTION

INSPECTION

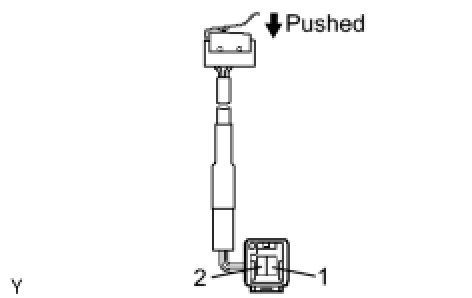

1. INSPECT SLIDE ROOF LIMIT SWITCH

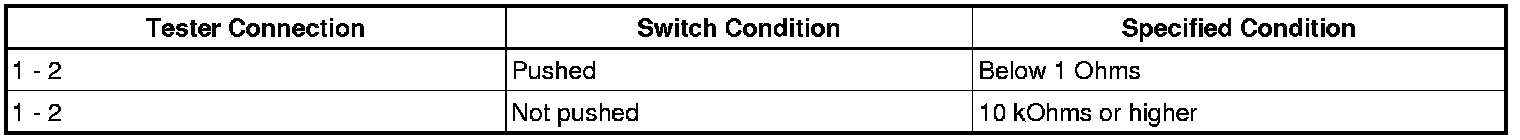

(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch.

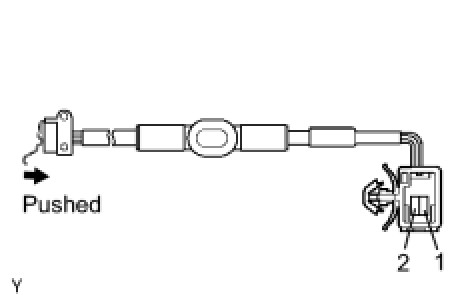

2. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF CLOSE RH)
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch.

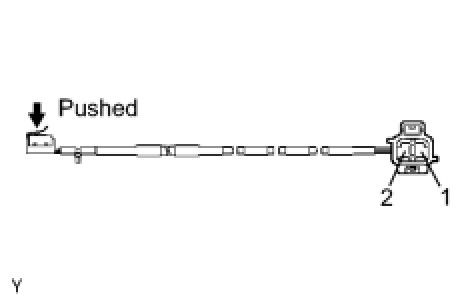

3. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF CLOSE LH)
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch.

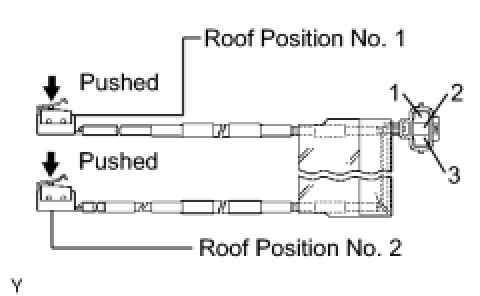

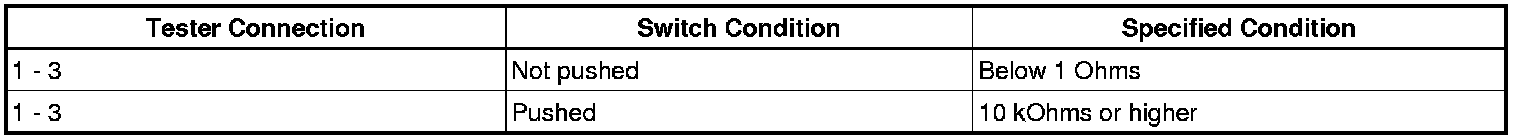

4. INSPECT NO. 1, NO. 2 ROOF POSITION SLIDE ROOF LIMIT SWITCH
(a) Measure the resistance of the switch (roof position No. 1).
Standard resistance:





If the result is not as specified, replace the side roof limit switch.
(b) Measure the resistance of the switch (roof position No. 2).
Standard resistance:





If the result is not as specified, replace the side roof limit switch.

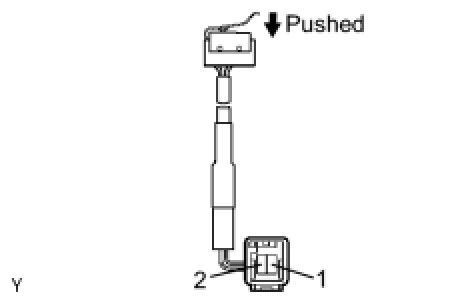

5. INSPECT NO. 3 ROOF POSITION SLIDE ROOF LIMIT SWITCH
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch.

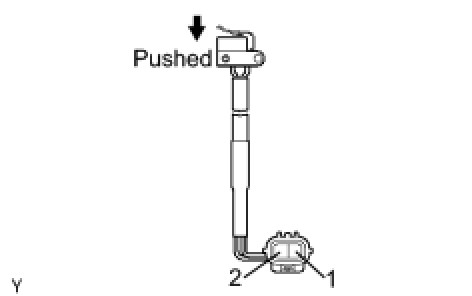

6. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF OPEN)
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch (Roof open).
