Front Seat Inner Belt Assembly

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

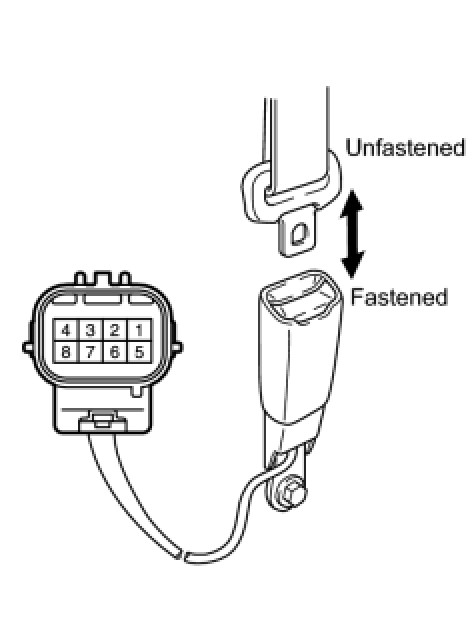

(a) Measure the resistance of the buckle switch.

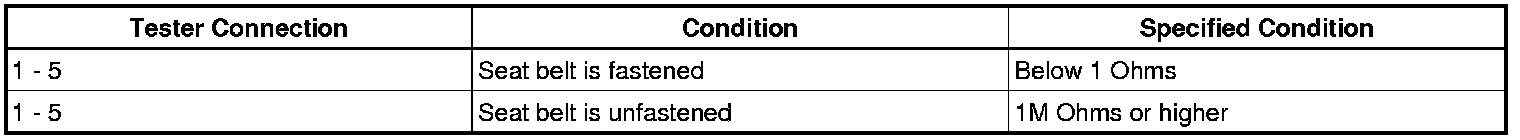

Standard resistance:





If the result is not as specified, replace the inner belt assembly.
(b) Check the front seat inner illumination Buckle Illumination Circuit.





2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
(a) Measure the resistance of the buckle switch.
Standard resistance:





If the result is not as specified, replace the inner belt assembly.
(b) Check the front seat inner illumination Buckle Illumination Circuit.





3. INSPECT OCCUPANT DETECTION SENSOR
(a) Measure the resistance of the buckle switch.
Standard resistance:





If the result is not as specified, replace the inner belt assembly.
