SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH
(a) Install the seat belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTE:

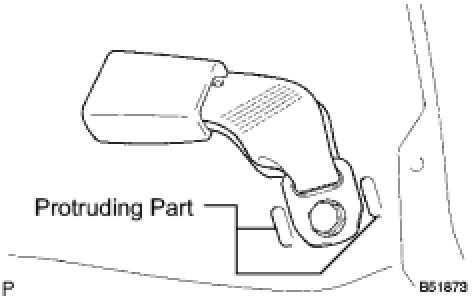

Do not overlap the anchor part and protruding part of the floor panel.

2. INSTALL REAR SEAT INNER BELT ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

3. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
