Seat Belt Tensioner: Testing and Inspection

SEAT BELT: SEAT BELT TENSION REDUCER: PROBLEM SYMPTOMS TABLE

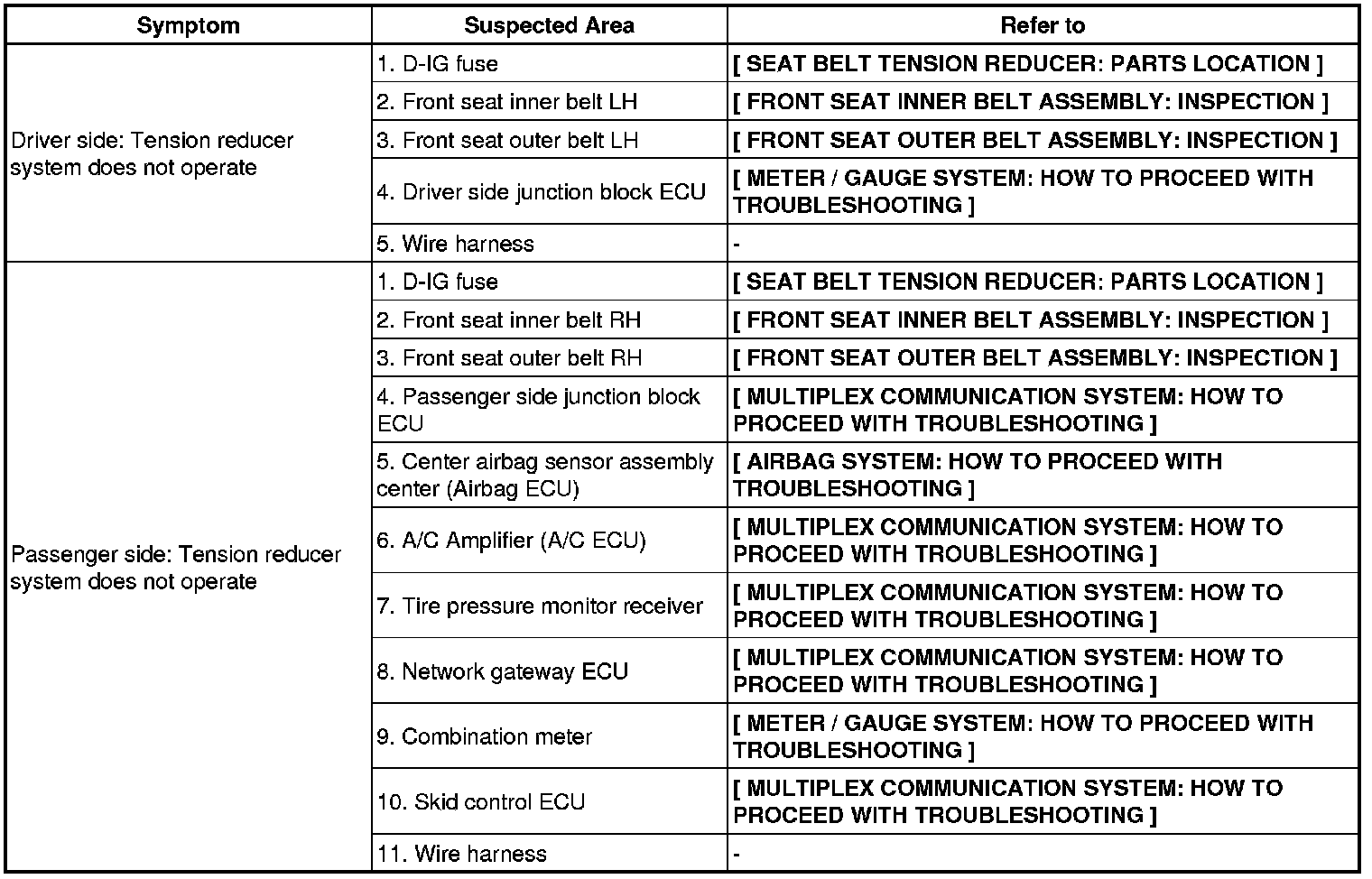

PROBLEM SYMPTOMS TABLE
HINT: Use the table below to help determine the cases of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected areas in order they are listed. Replace parts as necessary.

Seat Belt Tension Reducer System
