Pinout Values and Diagnostic Parameters

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: TERMINALS OF ECU

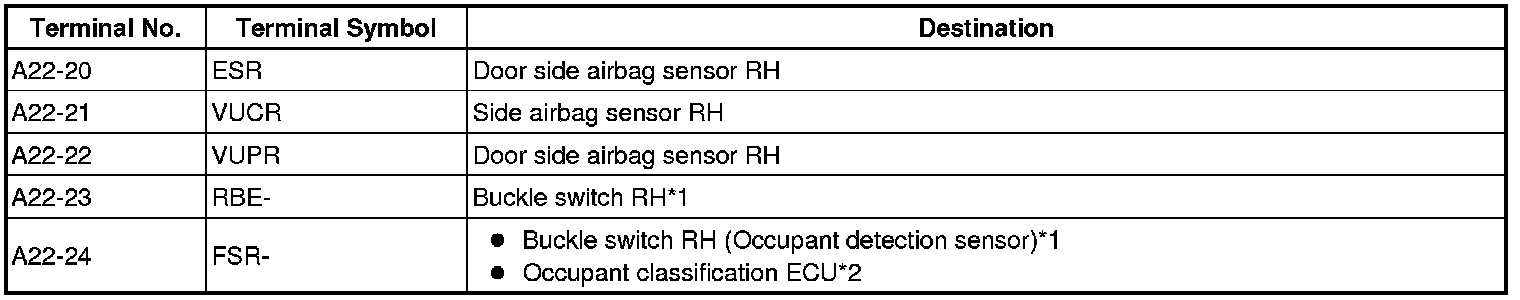

TERMINALS OF ECU

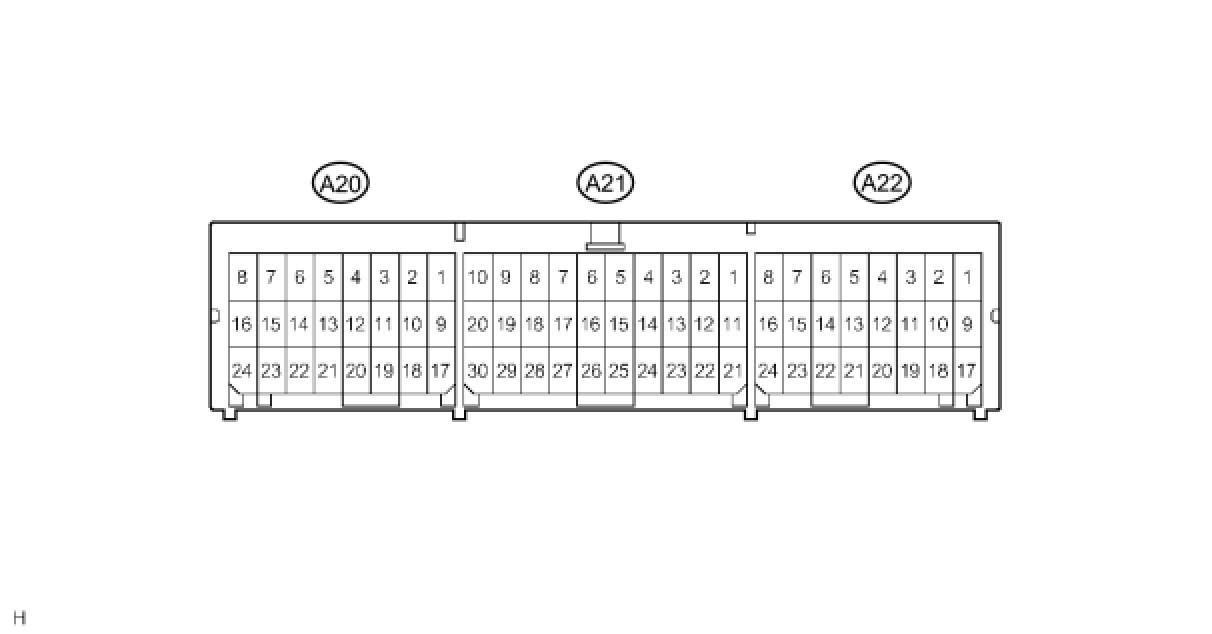

1. CENTER AIRBAG SENSOR













HINT:
- *1: w/o Occupant classification system
- *2: w/ Occupant classification system
