DOOR LOCK: DOOR CONTROL RECEIVER: INSPECTION

INSPECTION

1. INSPECT INNER REAR VIEW MIRROR ASSEMBLY (DOOR CONTROL RECEIVER)

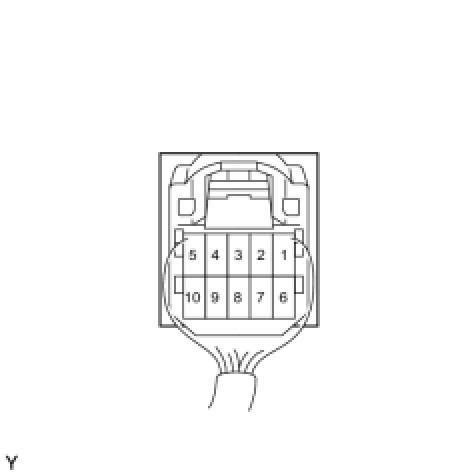

(a) Disconnect the I19 mirror connector.
(b) Measure the resistance and voltage of the wire harness side connector.
Standard voltage:





Standard resistance





- If the result is not as specified, repair or replace the harness or connector.

(c) Reconnect the I19 mirror connector.

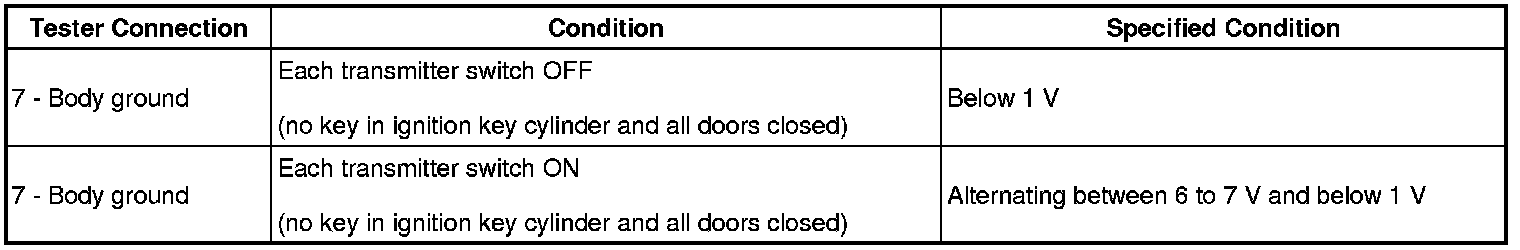

(d) Measure the voltage of the connector.
Standard voltage:





- If the result is not as specified, replace the inner rear view mirror assembly.
