AUDIO / VISUAL: NETWORK GATEWAY ECU: INSTALLATION

INSTALLATION





1. INSTALL NETWORK GATEWAY ECU

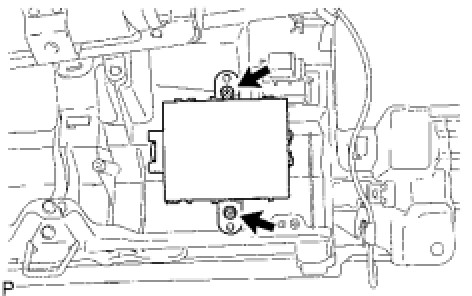

(a) Install the ECU with the 2 screws.
2. INSTALL INSTRUMENT PANEL REINFORCEMENT Reassembly
3. INSTALL NO. 2 HEATER TO REGISTER DUCT Reassembly
4. INSTALL NO. 3 HEATER TO REGISTER DUCT Reassembly
5. INSTALL NO. 1 HEATER TO REGISTER DUCT Reassembly
6. INSTALL FRONT DEFROSTER NOZZLE Reassembly
7. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT Reassembly
8. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT Reassembly
9. INSTALL NO. 1 INSTRUMENT PANEL PIN Reassembly
10. INSTALL STEERING COLUMN ASSEMBLY Reassembly
11. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Install the instrument panel safety pad Installation.
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
13. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
