Removal

A761E AUTOMATIC TRANSMISSION: SPEED SENSOR: REMOVAL

REMOVAL

1. REMOVE TRANSMISSION REVOLUTION SENSOR

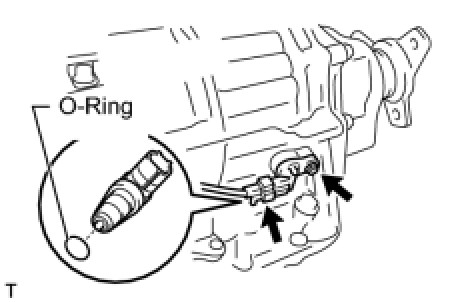

(a) Remove the transmission revolution sensor NT.
(1) Disconnect the transmission revolution sensor connector.
(2) Remove the bolt and transmission revolution sensor.
(3) Remove the O-ring from the transmission revolution sensor.

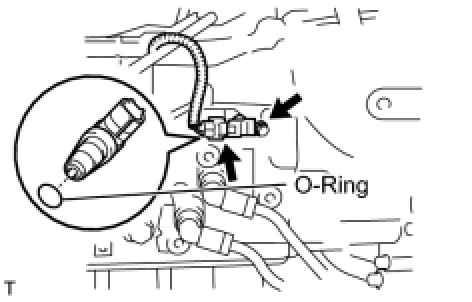

(b) Remove the transmission revolution sensor SP2.
(1) Disconnect the transmission revolution sensor connector.
(2) Remove the bolt and transmission revolution sensor.
(3) Remove the O-ring from the transmission revolution sensor.
