3UZ-FE FUEL: FUEL PUMP: INSTALLATION

INSTALLATION





1. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY
(a) Install a new gasket to the fuel suction plate.

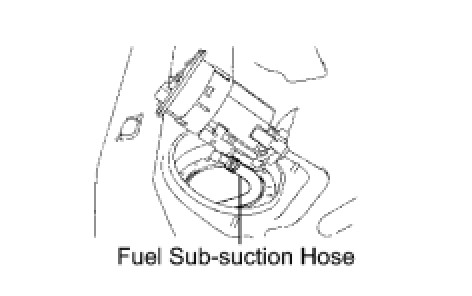

(b) Connect the fuel sub-suction hose to the fuel return jet tube.
(c) Attach the fuel pump and sender gauge to the fuel tank.
2. INSTALL FUEL TANK VENT TUBE SET PLATE
(a) Install the set plate with the 8 bolts.
Torque: 6.0 Nm (61 kgf-cm, 52 in-lbf)





3. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY

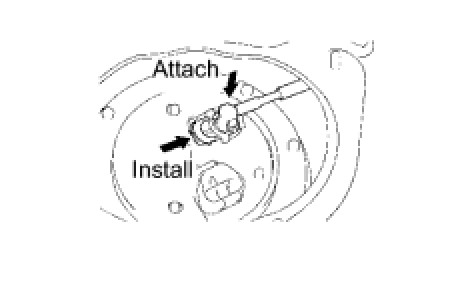

(a) Attach the fuel tube connector to the port of the fuel suction plate.
(b) Install the tube joint clip.
(c) Connect the fuel pump connector.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

6. CHECK FOR FUEL LEAKS
(a) Start the engine, and check that there are no fuel leaks after performing maintenance anywhere on the system.





7. INSTALL REAR FLOOR NO. 2 SERVICE HOLE COVER

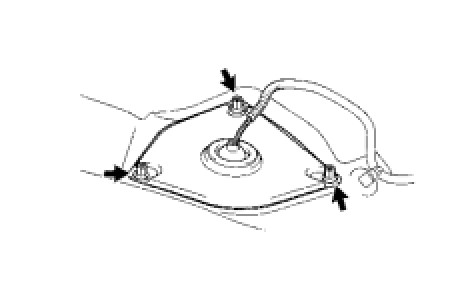

(a) Install the service hole cover with the 3 cap nuts.
8. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
