Fuel Pump Ballast Resistor: Testing and Inspection

3UZ-FE FUEL: FUEL PUMP RESISTOR: INSPECTION

INSPECTION





1. INSPECT FUEL PUMP RESISTOR

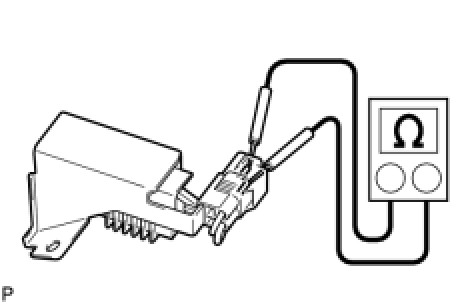

(a) Measure the resistance between the terminals.
Standard resistance:
0.53 to 0.57 Ohms at 20°C (68°F)
If the result is not as specified, replace the fuel pump resistor.
