Installation

3UZ-FE FUEL: FUEL PUMP RESISTOR: INSTALLATION

INSTALLATION

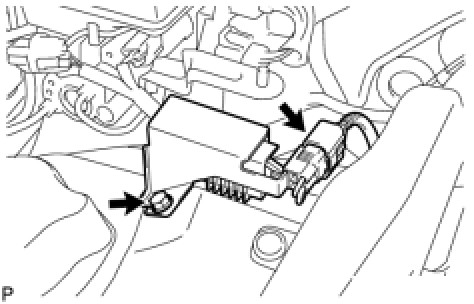

1. INSTALL FUEL PUMP RESISTOR
(a) Install the fuel pump resistor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(b) Connect the connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
