Installation

3UZ-FE FUEL: FUEL PRESSURE PULSATION DAMPER: INSTALLATION

INSTALLATION

1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY

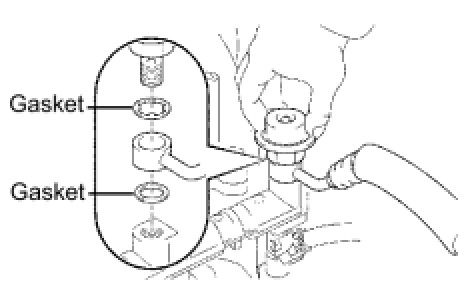

(a) Install 4 new gaskets and 2 pulsation dampers together with the No. 2 fuel pipe to the delivery pipe.

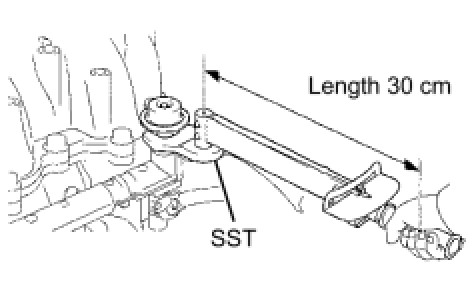

(b) Using SST, tighten the 2 pulsation dampers.
SST: 09612-24014
09617-24011
Torque: 33 Nm (337 kgf-cm, 24 ft-lbf)
Torque: 39 Nm (398 kgf-cm, 29 ft-lbf)
- Use a torque wrench with a fulcrum length of 30 cm (11.81 in.)
- Make sure SST and a wrench are connected in a straight line.

(c) Install the bolt to the No. 2 fuel pipe clamp.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)





(d) Using a union nut wrench, install the fuel pipe.
Torque: 28 Nm (286 kgf-cm, 21 ft-lbf)
Torque: 35 Nm (357 kgf-cm, 26 ft-lbf)
- Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
- Make sure a union nut wrench and a wrench are connected in a straight line.

2. INSTALL INTAKE AIR CONNECTOR PIPE Installation
3. INSTALL NO. 1 AIR CLEANER INLET Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

6. CHECK FOR FUEL LEAKS Installation
7. INSTALL V-BANK COVER Installation
