Fuel Delivery and Air Induction: Description and Operation








3UZ-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

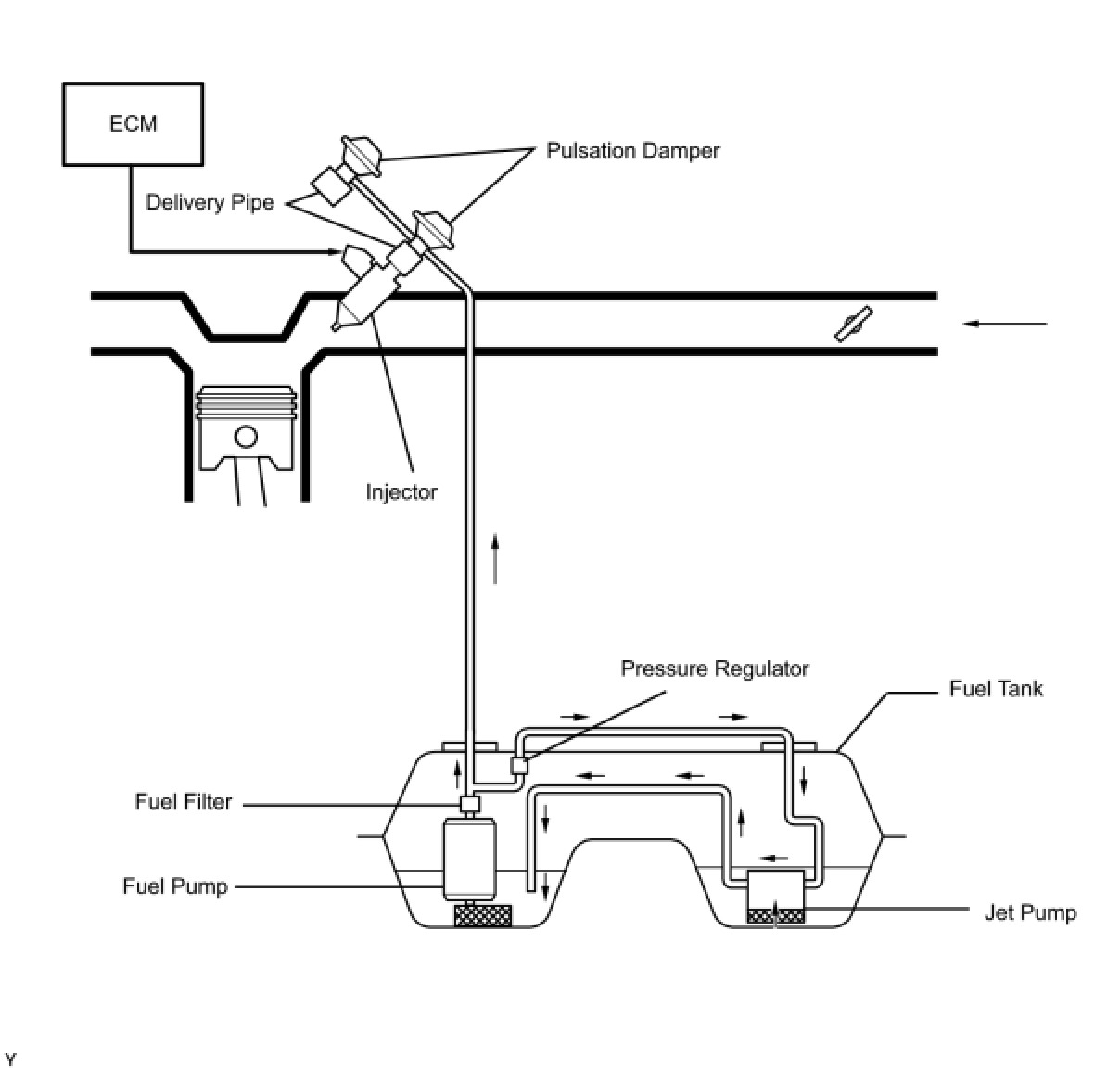

1. FUEL FLOW DIAGRAM

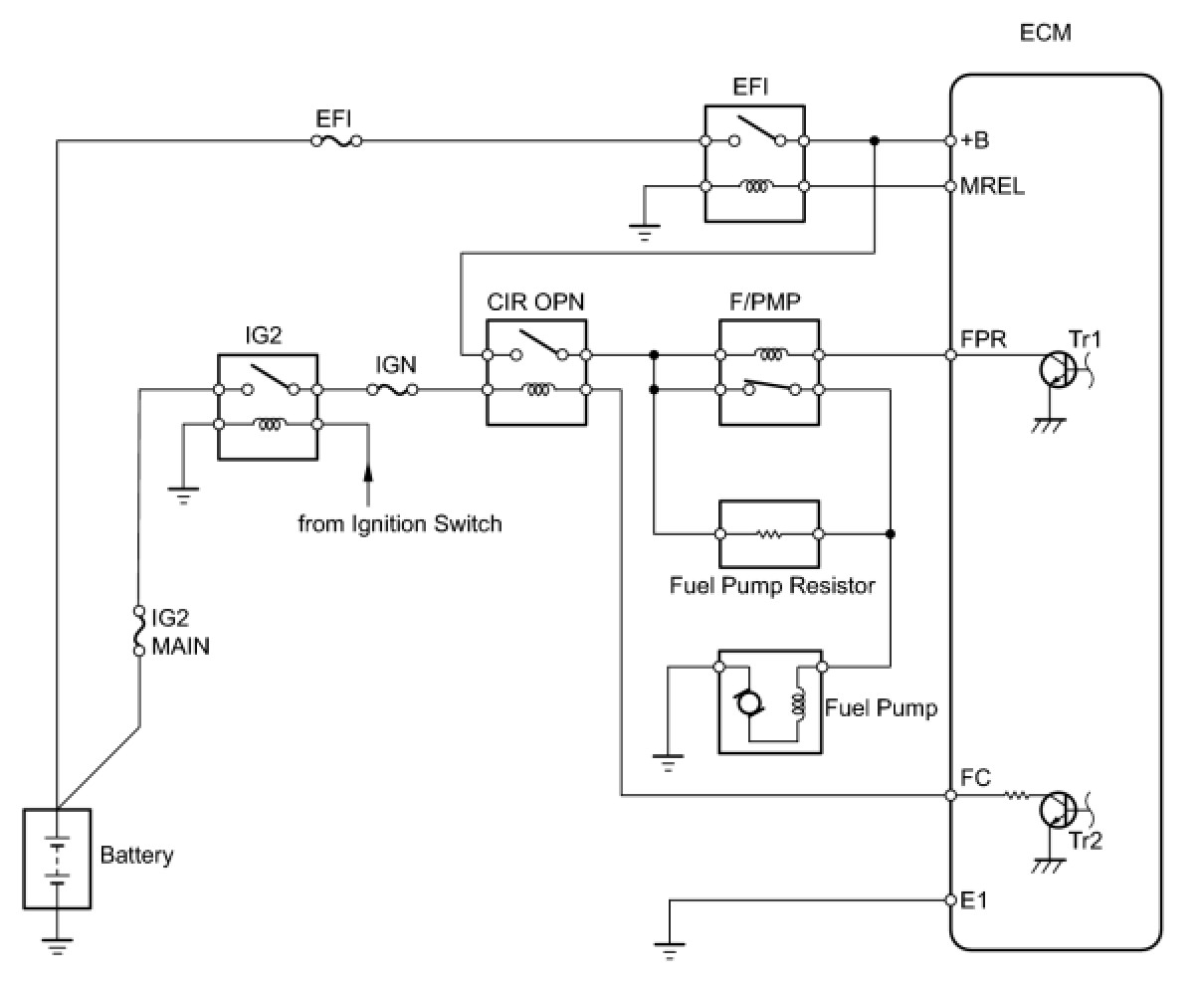

2. FUEL SYSTEM WIRING DIAGRAM

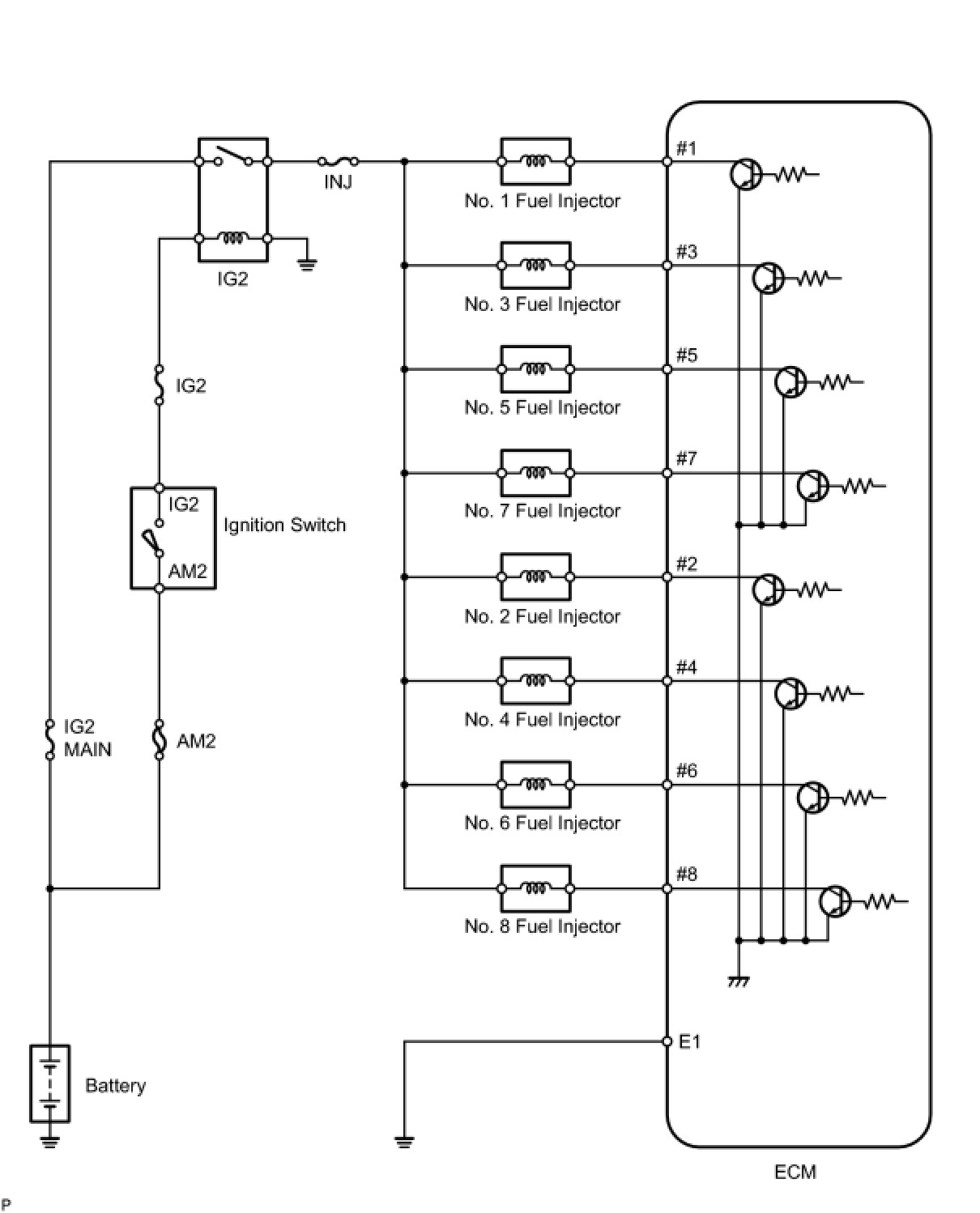

3. FUEL SYSTEM WIRING DIAGRAM 2
