Installation

3UZ-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL ROD: INSTALLATION

INSTALLATION

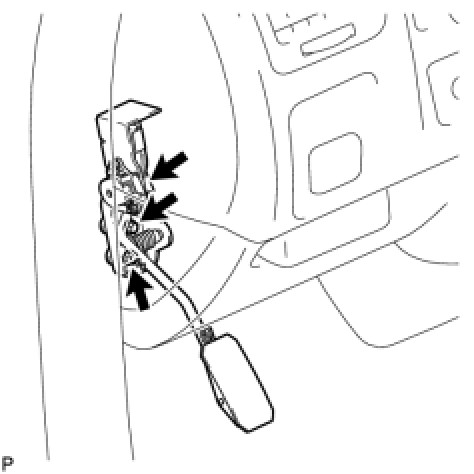

1. INSTALL ACCELERATOR PEDAL ROD





(a) Install the pedal rod with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(b) Connect the sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
