Fail-Safe Chart

3UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: FAIL-SAFE CHART

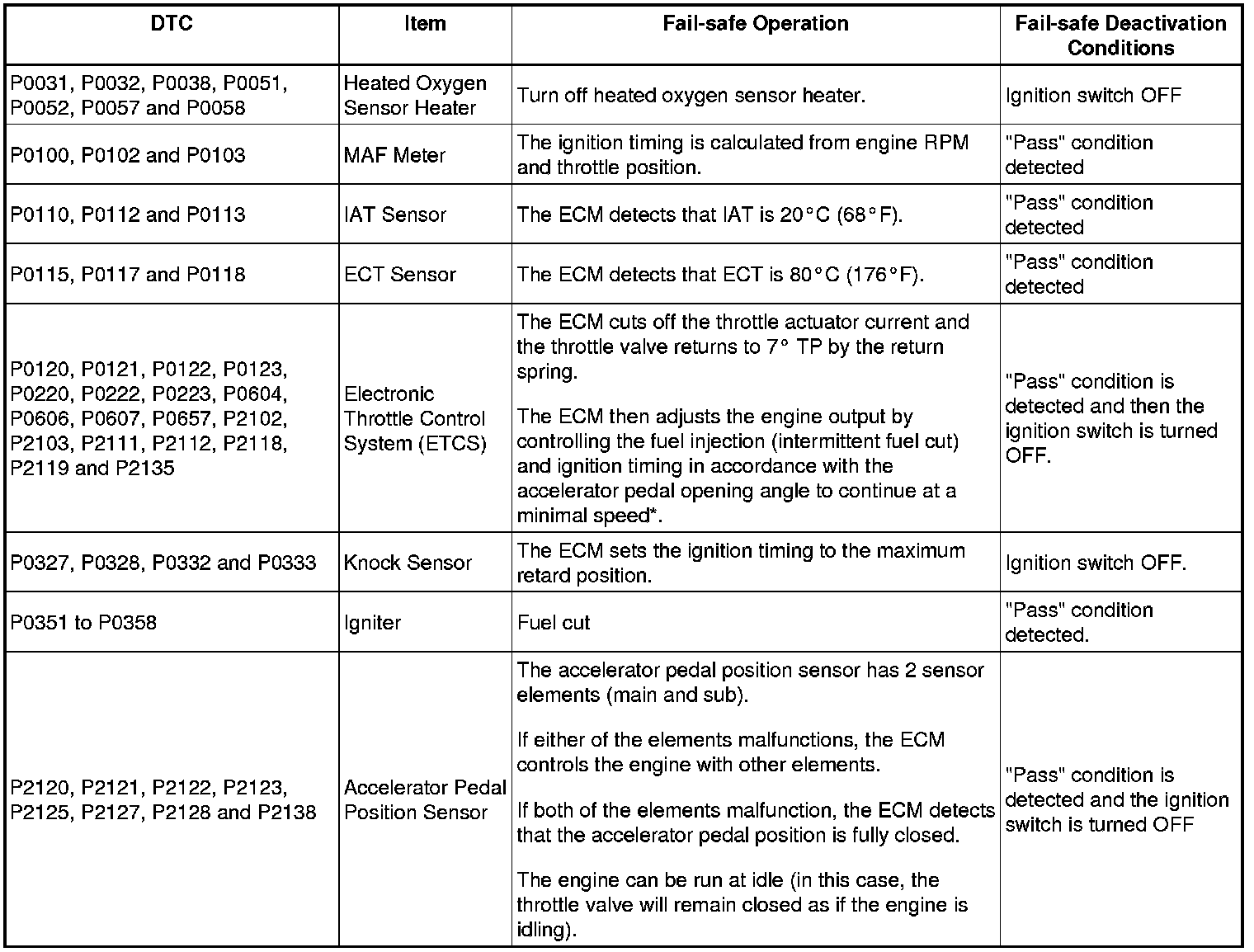

FAIL-SAFE CHART

If any of the following codes are recorded, the ECM enters the fail-safe mode.





HINT: *: The vehicle can be driven slowly when the accelerator pedal is depressed firmly and slowly. If the accelerator pedal is depressed quickly, the vehicle may speed up and slow down erratically.
