EFI Relay

3UZ-FE ENGINE CONTROL SYSTEM: EFI RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE EFI RELAY
(a) Remove the engine room No. 2 relay block cover.
(b) Remove the EFI relay from the engine room No. 2 relay block.
3. INSPECT EFI RELAY

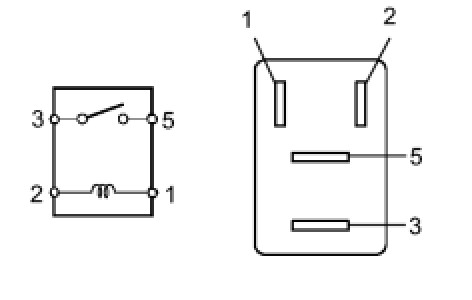

(a) Measure the resistance of the EFI relay.

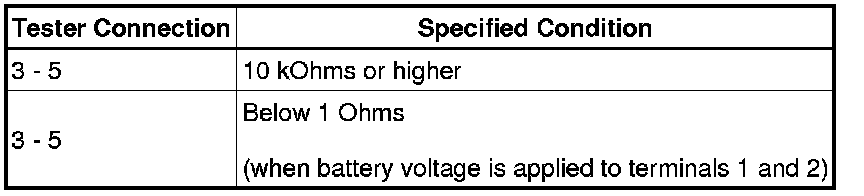

Standard resistance:





If the result is not as specified, replace the relay.
4. INSTALL EFI RELAY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
