CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE

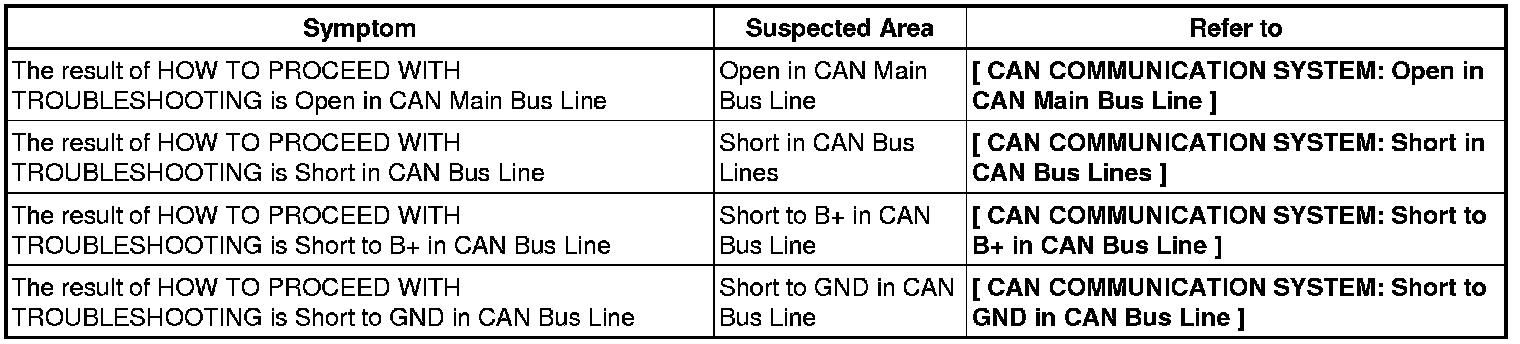

RESULT LIST OF HOW TO PROCEED WITH TROUBLESHOOTING

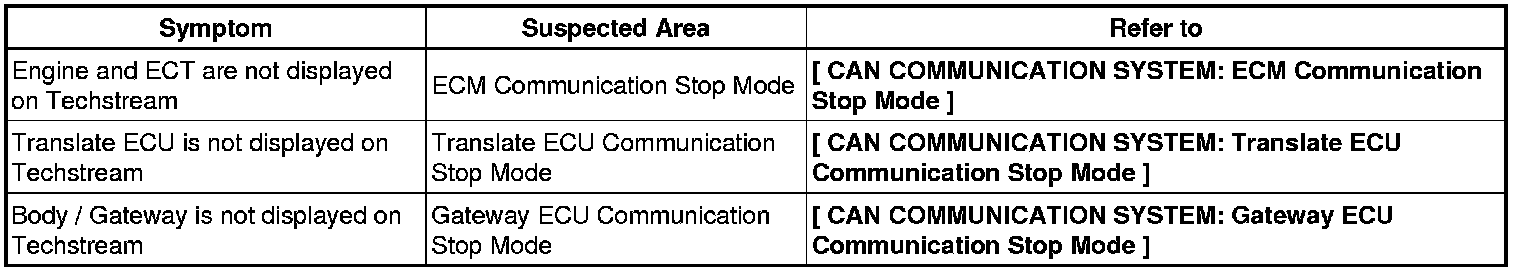

COMMUNICATION STOP MODE TABLE
